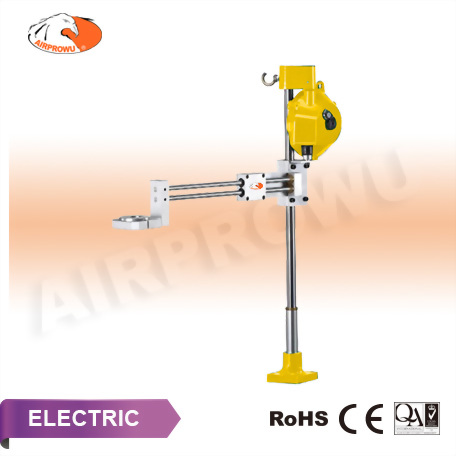

Torque Supporting Arm
Model :
STD-300A
STD-300A
Torque Supporting Arm
w/ Housing Spring Balancer
● Applicable Screwdriver Weight: 0.8~2.8 kg (1.76~6.17 lb)
● Horizontal Stroke: 300mm
● Vertical Stroke: 453mm (17.83")
● Max. Working Area: 137-517mm
● Max. Working Radius: 137~517mm(5.39"~20.35")
● Max. Torque: 150 kgf-cm (14.7 Nm)
● Overall Height: 817mm (32.16")
● Screwdriver Grip Radius: 25-45mm
Torque Supporting Arm
w/ Housing Spring Balancer
● Applicable Screwdriver Weight: 0.8~2.8 kg (1.76~6.17 lb)
● Horizontal Stroke: 300mm
● Vertical Stroke: 453mm (17.83")
● Max. Working Area: 137-517mm
● Max. Working Radius: 137~517mm(5.39"~20.35")
● Max. Torque: 150 kgf-cm (14.7 Nm)
● Overall Height: 817mm (32.16")
● Screwdriver Grip Radius: 25-45mm
STD-300A
Torque Supporting Arm
w/ Housing Spring Balancer
Torque Supporting Arm
w/ Housing Spring Balancer
|
Model No. |
Horizontal Stroke |
Max. Working Area |
Vertical Stroke |
Screwdriver Weight |
Overall Height |
Packing |
||||
|
水平行程 |
最大工作半徑 |
垂直行程 |
適用起子重量 |
總高 |
包裝 |
|||||
|
Inch |
mm |
mm |
Inch |
mm |
lb |
kg |
Inch |
mm |
- |
|
|
STD-300A |
11.81 |
300 |
137-517 |
17.83 |
453 |
1.76-6.17 |
0.8-2.8 |
32.17 |
817 |
77x29x14 cm , G.W: 8kg |
