Torque Reaction Arm
STD-508R-A Pneumatic
STD-508R-AE Pneumatic & Electric
Torque Reaction Arm
w/ Housing Spring Balancer
w/o Screwdriver

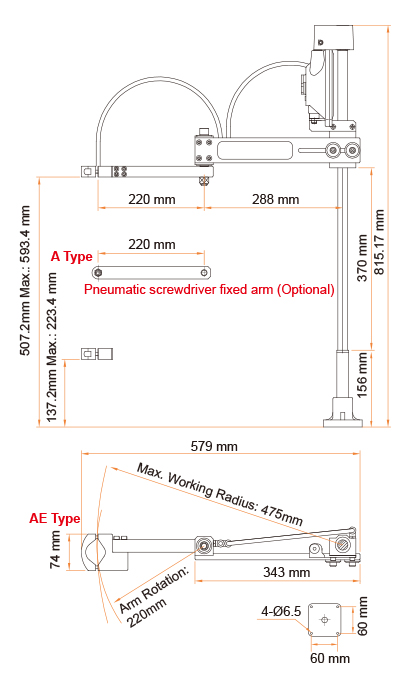

● Vertical Stroke: 370/ 453mm (14.57"/ 17.83")
● Max. Working Area: R508
● Max. Torque: 150kgf-cm (14.7 Nm)
● Overall Height: 815/817mm (32.09"/ 32.17")
● Screwdriver Grip Radius: 25-45mm
STD-508R-AE Pneumatic & Electric
Torque Reaction Arm
w/ Housing Spring Balancer
w/o Screwdriver
|
Model No. |
Pneumatic |
Electric |
Max. Working Area |
Vertical Stroke |
Screwdriver Weight |
Overall Height |
Packing |
|||
|
氣動 |
電動 |
最大工作半徑 |
垂直行程 |
適用起子重量 |
總高 |
包裝 |
||||
|
- |
- |
- |
Inch |
mm |
lb |
kg |
Inch |
mm |
- |
|
|
STD-508R-A |
◎ |
X |
R508 |
14.57 |
370 |
< 2.20 |
< 1 |
32.09 |
815 |
88x30x15 cm, G.W: 8kg |
|
STD-508R-AE |
◎ |
◎ |
R508 |
17.83 |
453 |
< 1.76 |
< 0.8 |
32.17 |
817 |
88x30x15 cm, G.W: 8kg |
