Industrial Precision Brushless Electric Screwdrivers
Industrial Precision Brushless Electric Screwdrivers
Lever Start Type
● Patented for its special mechanism, the perfect combination from electronic control,
a more precise torque, lightweight, low temperature rise and longer service life.
● Brushless environmental motor, maintenance-free, high efficiency, low temperature rise,
a product made for cleanrooms, suitable for: mobile phones, IPADS, watches, laptops,
communication equipment and other precision products.
● The electronic brake mechanism adopts the Hall element,
which has more sensitive braking action and longer service life.
● Lightweight, low impact force, can effectively extend the service life of the screwdrivers.
Industrial Precision Brushless Electric Screwdrivers
Lever Start Type
Torque Range: 0.98 - 11.76 N.m
|
Model No. |
Input Voltage |
Torque Range |
Available Controller |
Free Speed |
Bits Type |
Machine Screw |
Tapping Screw |
|||||
|
輸入電壓 |
輸出扭力範圍 |
適用電源控制器 |
無負載轉速 |
適用起子頭 |
機械牙徑 |
自攻牙徑 |
||||||
|
VDC |
Kgf-cm |
Lbf-in |
N-m |
Manual |
Automation |
R.P.M (±10%) |
- |
mm |
Inch |
mm |
Inch |
|
|

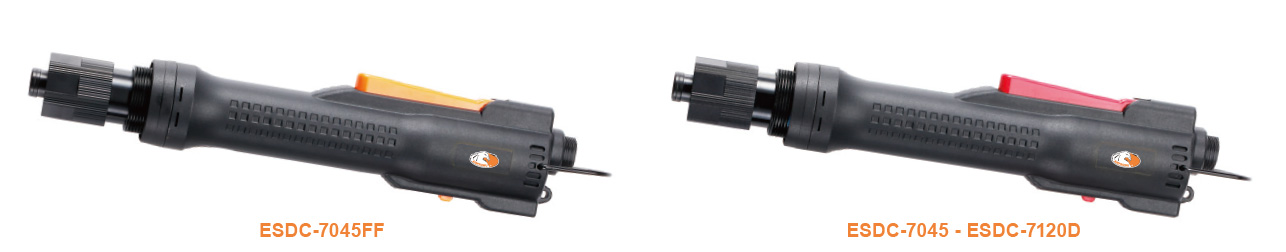

ESDC-7045FF |
36 |
10 - 45 |
8.67 - 39.05 |
0.98 - 4.41 |
ESDC-36S |
ESDC-36ST |
1800 |
B: Hex 6.35mm |
3.0 - 5.0 |
0.11 - 0.19 |
3.0 - 4.0 |
0.11 - 0.15 |
|
ESDC-7045 |
36 |
10 - 45 |
8.67 - 39.05 |
0.98 - 4.41 |
ESDC-36S |
ESDC-36ST |
1000 |
B: Hex 6.35mm |
3.0 - 5.0 |
0.11 - 0.19 |
3.0 - 4.0 |
0.11 - 0.15 |
|
ESDC-7045D |
36 |
10 - 45 |
8.67 - 39.05 |
0.98 - 4.41 |
ESDC-36S |
ESDC-36ST |
400 |
B: Hex 6.35mm |
3.0 - 5.0 |
0.11 - 0.19 |
3.0 - 4.0 |
0.11 - 0.15 |
|
ESDC-7060 |
36 |
20 - 60 |
17.35 - 52.07 |
1.96 - 5.88 |
ESDC-36L |
ESDC-36LT |
1000 |
B: Hex 6.35mm |
4.0 - 6.0 |
0.15 - 0.23 |
4.0 - 4.5 |
0.15 - 0.17 |
|
ESDC-7070D |
36 |
20 - 70 |
17.35 - 60.75 |
1.96 - 6.86 |
ESDC-36L |
ESDC-36LT |
400 |
B: Hex 6.35mm |
4.0 - 6.0 |
0.15 - 0.23 |
4.0 - 4.5 |
0.15 - 0.17 |
|
ESDC-7120D |
36 |
40 - 120 |
34.71 - 104.15 |
3.92 - 11.76 |
ESDC-36 |
ESDC-36T |
320 |
B: Hex 6.35mm |
4-0 - 8.0 |
0.15 - 0.31 |
4.0 - 6.0 |
0.15 - 0.23 |

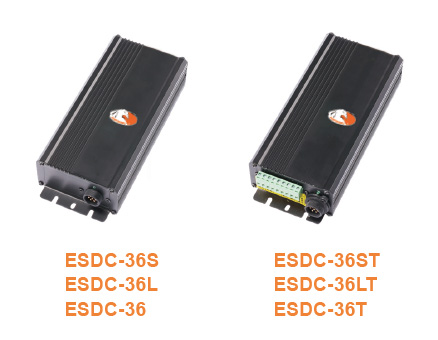

ESDC-36S / ESDC-36L / ESDC-36 NEW
ESDC-36ST / ESDC-36LT / ESDC-36T
Power Supply
|
Model No. |
Operating Vol. |
Output Vol. |
Dimension |
Weight |
|
|
工作電壓 |
輸出電壓 |
體積 |
重量 |
||
|
ESDC-36S |
220 - 240 V |
36 V |
190 x 90 x 45 |
510 g |
|
|
ESDC-36L |
100 - 240 V |
36 V |
233 x 91 x 45 |
840 g |
|
|
ESDC-36 |
100 - 240 V |
36 V |
256 x 140 x 60 |
1250 g |
|
|
ESDC-36ST |
220 - 240 V |
36 V |
190 x 90 x 45 |
550 g |
|
|
ESDC-36LT |
100 - 240 V |
36 V |
233 x 91 x 45 |
870 g |
|
|
ESDC-36T |
100 - 240 V |
36 V |
250 x 140 x 60 |
1400 g |
|
