Industrial Precision Brushless Electric Screwdrivers
Industrial Precision Brushless Electric Screwdrivers
Push To Start Type
● Patented for its special mechanism, the perfect combination from electronic control,
a more precise torque, lightweight, low temperature rise and longer service life.
● Brushless environmental motor, maintenance-free, high efficiency, low temperature rise,
a product made for cleanrooms, suitable for: mobile phones, IPADS, watches, laptops,
communication equipment and other precision products.
● The electronic brake mechanism adopts the Hall element,
which has more sensitive braking action and longer service life.
● Lightweight, low impact force, can effectively extend the service life of the screwdrivers.
Industrial Precision Brushless Electric Screwdrivers
Push To Start Type
|
Model No. |
Input Voltage |
Torque Range |
Available Controller |
Free Speed |
Bits Type |
Machine Screw |
Tapping Screw |
|||||
|
輸入電壓 |
輸出扭力範圍 |
適用電源控制器 |
無負載轉速 |
適用起子頭 |
機械牙徑 |
自攻牙徑 |
||||||
|
VDC |
Kgf-cm |
Lbf-in |
N-m |
Manual |
Automation |
R.P.M (±10%) |
- |
mm |
Inch |
mm |
Inch |
|
|

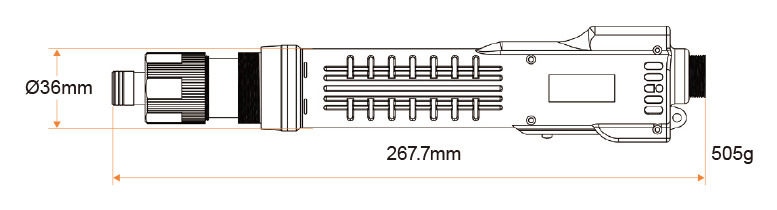

ESDC-5008PFF |
20 - 30 |
4 - 16 |
3.47 - 13.88 |
0.392 - 1.568 |
ESDC-30 |
ESDC-30T |
1200 - 1800 |
A, B |
2.3 - 3.5 |
0.09 - 0.13 |
2.3 - 3.0 |
0.09 - 0.11 |
|
ESDC-6008P |
20 - 30 |
4 - 18 |
3.47 - 15.62 |
0.392 - 1.764 |
ESDC-30 |
ESDC-30T |
700 - 1000 |
A, B |
2.3 - 3.5 |
0.09 - 0.13 |
2.3 - 3.0 |
0.09 - 0.11 |
ESDC-30 / ESDC-30T NEW
Power Supply
|
Model No. |
Operating Vol. |
Output Vol. |
Dimension |
Weight |
|
|
工作電壓 |
輸出電壓 |
體積 |
重量 |
||
|
ESDC-30 |
100 - 240 V |
20 - 30 V |
153 x 60 x 35 |
210 g |
|
|
ESDC-30T |
100 - 240 V |
20 - 30 V |
153 x 60 x 45 |
240 g |
|
