Transducerized DC Electric Torque Control Angle Type Screwdrivers Set
Transducerized DC Electric Torque Control
Angle Type Screwdrivers Set
● No complex parameter settings are required, making it easy to operate on-site.
● Can setup to tighten 64 different types screws for each job.
● Basic and advanced tightening mode.
● Instant error detection that meets the highest quality requirements.

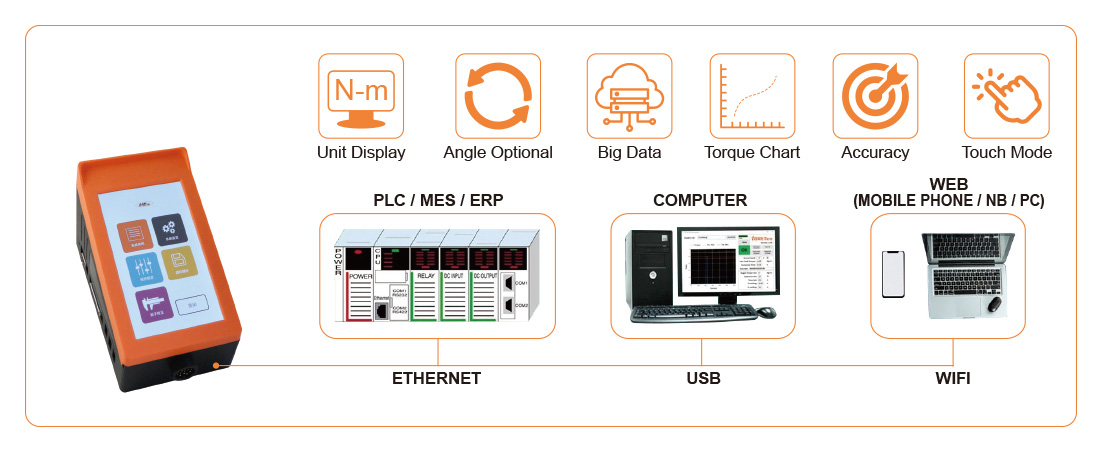

● Complete and detailed record data, fully integrated with MES systems and ERP systems.
● Equipped with various communication interfaces that comply with industry standards.
(RS232, RS485, Ethernet USB B-Type)

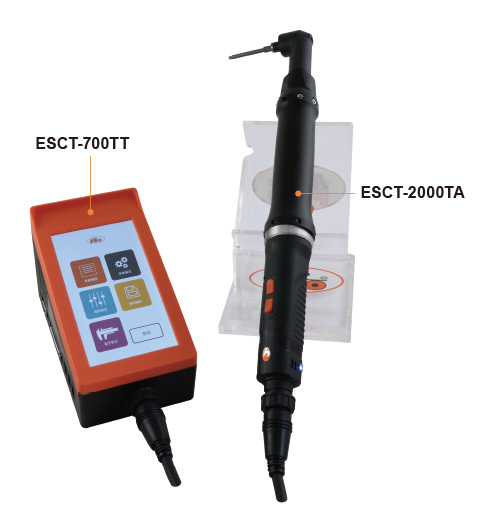

Transducerized DC Electric Torque Control
Angle Type Screwdrivers Set
● Position Sensor: Hall Sensor
● Warranty: 1,000,000 cycles/one year
● Available Bit Size: B Type: 6.35(1/4") Hex Shank
Torque Range: 4 - 20 N.m
|
Model No. |
Torque Range |
Free Speed |
Length |
Handheld O.D. |
Weight |
Precision |
||
|
輸出扭力範圍 |
無負載轉速 |
長度 |
手握直徑 |
重量 |
精準度 |
|||
|
Kgf-cm |
Lbf-in |
N-m |
R.P.M |
mm |
mm |
kg |
- |
|
|
ESCT-2000TA |
40.78 - 203.94 |
35.40 - 177.01 |
4.0 - 20.0 |
220 |
455 |
50 |
1.33 |
±5% |

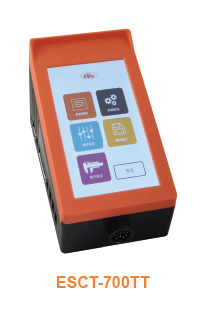

● Front Panel: Touch Panel
● Protection: Over Current / Over Voltage / Overheating ;
Abnormal Torque / Abnormal Position
● Dimensions:
- Controller: 185 x 112 x 120mm
- Power Supply: 217 x 94 x 44mm
● Weight:
- Controller: 670g±10%
- Power Supply: 1.372kg±10%
|
Model No. |
Rated Power |
AC Power Input |
Output Voltage |
Communication Ports |
Numbers of I/O |
Parameter Sets |
|
|
額定輸出功率 |
AC輸入電壓 |
輸出電壓 |
通訊介面 |
I/O 數目 |
設定參數 |
||
|
ESCT-700TT |
360W |
AC100 - 240V, |
36 VDC |
RS232, RS485 |
Input: 15, Output: 8 |
8 Jobs, |
|
