Servo Screwdrive Controller
Model :
ESCT Series
ESCT Series NEW
Servo Screwdrive Controller
● One-To-Two High Performance Controller.
● Can work with 2 Screwdrivers either simultaneously or interchangeably.
● 10.1-inch Large Screen Can display either One or Two Screwdrivers working results.
● Large Memory Capacity Can store more than 200,000 records.
Servo Screwdrive Controller
● One-To-Two High Performance Controller.
● Can work with 2 Screwdrivers either simultaneously or interchangeably.
● 10.1-inch Large Screen Can display either One or Two Screwdrivers working results.
● Large Memory Capacity Can store more than 200,000 records.
ESCT Series NEW
Servo Screwdrive Controller
● Input Voltage: 100 - 240 VAC
● DC Bus Voltage: 38 VDC
● Screensize: 10.1" Touchscreen

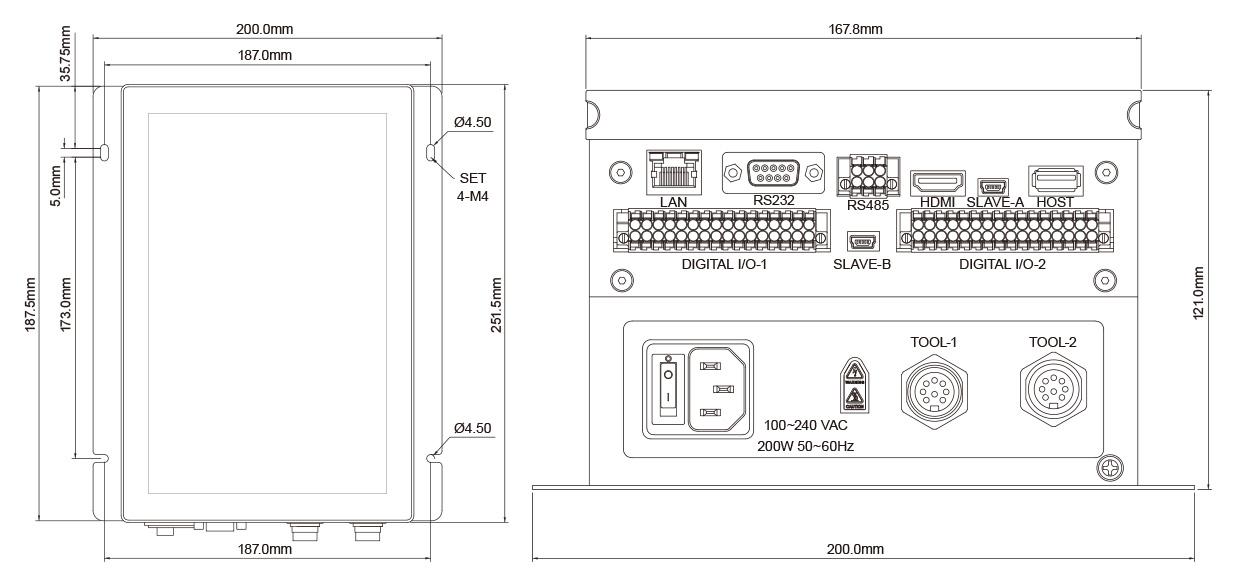

● Dimensions: 200 x 252 x 121 mm
Servo Screwdrive Controller
● Input Voltage: 100 - 240 VAC
● DC Bus Voltage: 38 VDC
● Screensize: 10.1" Touchscreen
● Dimensions: 200 x 252 x 121 mm
|
Model No. |
Rated Output Current |
Rated Output Power |
Weigth |
Approval By. |
|
|
額定輸出電流 |
額定輸出功率 |
重量 |
安規認可 |
||
|
ESCT-01 |
3.7 Arms |
100W/1-Port (Screwdriver) |
4.06 kg |
CE, |
|
|
ESCT-02 |
7.4 Arms |
200W/2-Port (Screwdriver) |
4.06 kg |
CE, |
|
