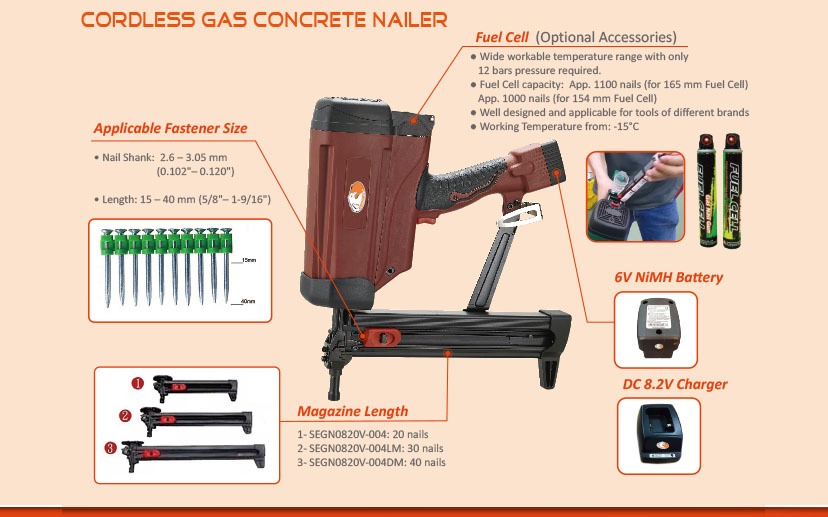

Cordless Gas Concrete Nailer
Model :
SEGN0820V-004 / SEGN0820V-004LM / SEGN0820V-004DM
SEGN0820V-004 20 nails
SEGN0820V-004LM 30 nails
SEGN0820V-004DM 40 nails
Cordless Gas Concrete Nailer
● Cordless, great self-powered and easy to maneuver
● Patent designed battery - easy and quick loading and unloading
● Unique design for fuel cell loading and unloading
● No gas smell when loading and unloading fuel cell
● 180° Adjustable belt hook
● Anti-dry fire mechanism
● Easy maintenance and equipped with maintenance indicator light
Fuel Cell
● Wide workable temperature range with only 12 bars pressure required.
● Fuel Cell capacity:
App. 1100 nails (for 165 mm Fuel Cell)
App. 1000 nails (for 154 mm Fuel Cell)
● Well designed and applicable for tools of different brands
● Working Temperature from: -15°C
SEGN0820V-004LM 30 nails
SEGN0820V-004DM 40 nails
Cordless Gas Concrete Nailer
● Cordless, great self-powered and easy to maneuver
● Patent designed battery - easy and quick loading and unloading
● Unique design for fuel cell loading and unloading
● No gas smell when loading and unloading fuel cell
● 180° Adjustable belt hook
● Anti-dry fire mechanism
● Easy maintenance and equipped with maintenance indicator light
Fuel Cell
● Wide workable temperature range with only 12 bars pressure required.
● Fuel Cell capacity:
App. 1100 nails (for 165 mm Fuel Cell)
App. 1000 nails (for 154 mm Fuel Cell)
● Well designed and applicable for tools of different brands
● Working Temperature from: -15°C
SEGN0820V-004 20 nails
SEGN0820V-004LM 30 nails
SEGN0820V-004DM 40 nails
Cordless Gas Concrete Nailer
Dimension
SEGN0820V-004
● 415 x 365 x 110 mm
● 3.73 kg / 8.22 lb
(include battery + fuel cell)
SEGN0820V-004LM
● 415 x 390 x 110 mm
● 3.82 kg / 8.42 lb
(include battery + fuel cell)
SEGN0820V-004DM
● 415 x 445 x 110 mm
● 3.92 kg / 8.64 lb
(include battery + fuel cell)
Contents
● 1PC DC 8.2V Charger
● 2PCS 6V NiMH Battery
● 1PC Safety Goggles
● 1PC Hex Wrench
● 1PC Blow Molded Case
SEGN0820V-004LM 30 nails
SEGN0820V-004DM 40 nails
Cordless Gas Concrete Nailer
Dimension
SEGN0820V-004
● 415 x 365 x 110 mm
● 3.73 kg / 8.22 lb
(include battery + fuel cell)
SEGN0820V-004LM
● 415 x 390 x 110 mm
● 3.82 kg / 8.42 lb
(include battery + fuel cell)
SEGN0820V-004DM
● 415 x 445 x 110 mm
● 3.92 kg / 8.64 lb
(include battery + fuel cell)
Contents
● 1PC DC 8.2V Charger
● 2PCS 6V NiMH Battery
● 1PC Safety Goggles
● 1PC Hex Wrench
● 1PC Blow Molded Case
|

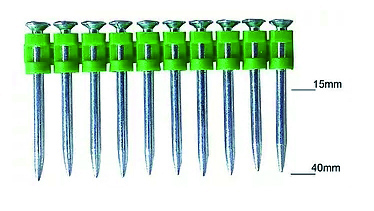

Applicable Fastener Size |
|
|
Nail Shank |
2.6 ~ 3.05 mm (0.102"~ 0.120") |
|
Nail Length (inch) |
15 ~ 40 mm (5/8"~ 1-9/16") |
|
Specification |
|
|
Nail capacity |
20/ 30/ 40 nails |
|
Speed |
2 nails/ second |
|
Fuel cell life |
Both 165 & 154 mm are workable |
|
Battery |
App. 4000 nails per charge |
SEGN0820V-004 20 nails
SEGN0820V-004LM 30 nails
SEGN0820V-004DM 40 nails
Cordless Gas Concrete Nailer
SEGN0820V-004LM 30 nails
SEGN0820V-004DM 40 nails
Cordless Gas Concrete Nailer
SEGN0820V-004 20 nails
SEGN0820V-004LM 30 nails
SEGN0820V-004DM 40 nails
Cordless Gas Concrete Nailer
● Fastening all kinds of track systems to concrete, steel, block.
● Fastening all kinds of insulation systems to concrete, steel, block.
● Fastening all kinds of fixtures for light pipe to walls and ceilings.
● Fastening all kinds of accessories, such as clip, washer, to concrete and steel.
SEGN0820V-004LM 30 nails
SEGN0820V-004DM 40 nails
Cordless Gas Concrete Nailer
● Fastening all kinds of track systems to concrete, steel, block.
● Fastening all kinds of insulation systems to concrete, steel, block.
● Fastening all kinds of fixtures for light pipe to walls and ceilings.
● Fastening all kinds of accessories, such as clip, washer, to concrete and steel.
