SEGN0820V-003

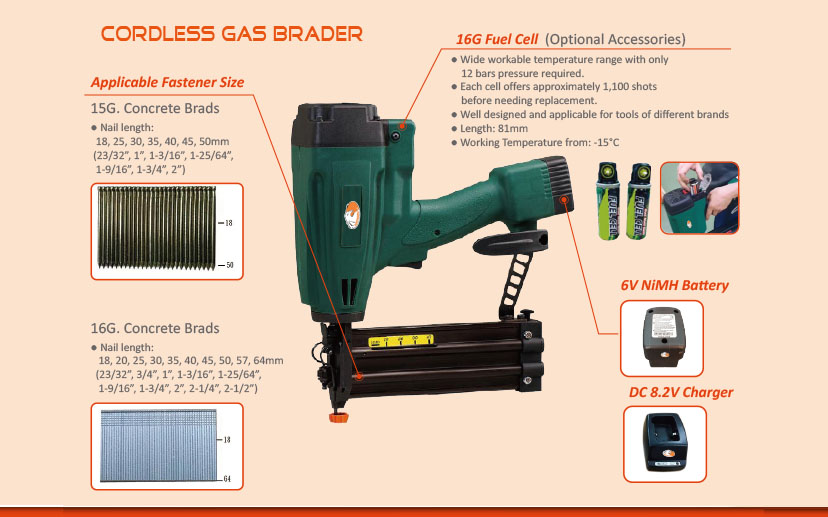

Cordless Gas Brader


● Drives both 16G brads and 15G concrete brads
● Cordless, self-powered and easy to maneuver
● No gas smell for fuel cell loading and unloading
● Easy maintenance and equipped with maintenance indicator light
● Easy side loading magazine
● Anti-dry fire mechanism

16G Fuel Cell
● Wide workable temperature range with only 12 bars pressure required.
● Each cell offers approximately 1,100 shots before needing replacement.
● Well designed and applicable for tools of different brands
● Length: 81 mm
● Working Temperature from: -15°C

SEGN0820V-003
Cordless Gas Brader


Dimension
● 340 x 100 x 310 mm
● 2.65 kg / 5.8 lb
(include battery + fuel cell)


Contents
● 1PC     DC 8.2V Charger
● 2PCS   6V NiMH Battery
● 1PC     Safety Goggles
● 1PC     Hex Wrench
● 1PC     Blow Molded Case



15G. Concrete Brads
● Nail length: 18, 25, 30, 35, 40, 45, 50mm
(23/32”, 1”, 1-3/16”, 1-25/64”, 1-9/16”, 1-3/4”, 2”)

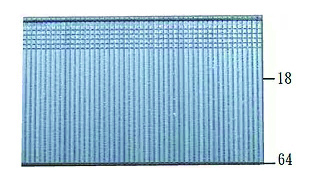

16G. Concrete Brads
● Nail length: 18, 20, 25, 30, 35, 40, 45, 50, 57, 64mm
(23/32”, 3/4”, 1”, 1-3/16”, 1-25/64”, 1-9/16”, 1-3/4”, 2”,
 2-1/4”, 2-1/2”)

Specification
Nail capacity	100 nails
Speed	2 nails/ second
Fuel cell life	1100 nails (approximately)
Battery	4000 nails per charge (approximately)

SEGN0820V-003
Cordless Gas Brader

SEGN0820V-003
Cordless Gas Brader


● Door & Window trims
● Decorative trim
● Finished paneling
● Cabinet work
● Interior finishing
● Picture frame assembly
