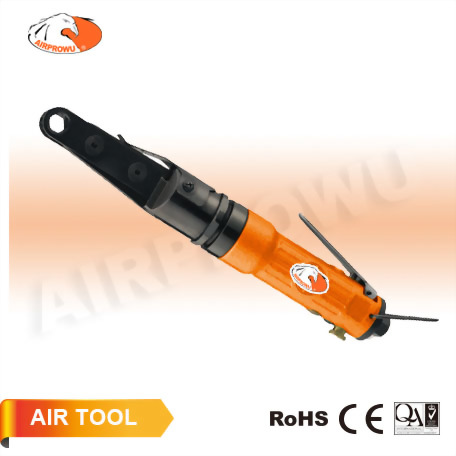

Close-End Air Ratchet Wrench
Close-End Air Ratchet Wrench
● Rear Exhaust
● Hex Size: 10,11,12,13,14,15,16,17,18,19 mm (11/16")
● Working Torque: 11 ft-lb(15 Nm)
|
Model No. |
A |
B |
C |
D |
E |
F |
|
mm |
mm |
mm |
mm |
mm |
mm |
|
|
SA3710B |
51.0 |
26 |
18.0 |
115 |
33.2 |
16.6 |
Close-End Air Ratchet Wrench
|
Model No. |
Hex Size |
Max. |
Free |
Air Cons. |
Overall |
Air Inlet |
Net |
Sound |
||||
|
六角尺寸 |
最大扭力 |
無負載轉速 |
耗氣量 |
長度 |
進氣口 |
重量 |
嗓音值 |
|||||
|
mm |
Nm |
ft-lb |
R.P.M |
CFM |
L/min |
Inch |
mm |
P.T |
lb |
kg |
dBA |
|
|
SA3710B |
10,11,12,13,14,15, |
25 |
18 |
190 |
7.5 |
212 |
13.30 |
338 |
1/4 |
4.40 |
2.00 |
87 |
(Air Pressure at 90 psi, 6.2 bar , 6.3 kg/cm2)
Close-End Air Ratchet Wrench
● The tool can fasten bolts and nuts easily in the narrow spaces,
where other tools cannot reach.
● Remove: Loosen a nut then take out.
● Fasten: Push trigger to position a nut then lock it.
