Mini Close-End Air Ratchet Wrench w/ Bit Adaptor
Model :
SA3718
SA3718 w/ Bit Adaptor
Mini Close-End Air Ratchet Wrench
● Rear Exhaust
● Hex Size: 6mm (1/4")
● Working Torque: 7 ft-lb(10 Nm)

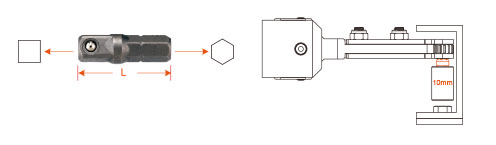

Bit Adaptor
● Square Type: 1/4"
● Hex. Type: 1/4"
● Length (L): 25mm
● Weight: 10 g
Mini Close-End Air Ratchet Wrench
● Rear Exhaust
● Hex Size: 6mm (1/4")
● Working Torque: 7 ft-lb(10 Nm)
Bit Adaptor
● Square Type: 1/4"
● Hex. Type: 1/4"
● Length (L): 25mm
● Weight: 10 g
Used
with SA3718-1/4" can be used with Multi-Size Thin
Socket
SA3718 w/ Bit Adaptor
Mini Close-End Air Ratchet Wrench
● Packing: 5pcs/10pcs/ Ctn/ 12.8kg/ 16.4kg/ 1.1' Cuft
Mini Close-End Air Ratchet Wrench
● Packing: 5pcs/10pcs/ Ctn/ 12.8kg/ 16.4kg/ 1.1' Cuft
|
Model No. |
Hex Size |
Max. |
Free |
Air Cons. |
Overall |
Air |
Net |
Sound |
||||
|
六角尺寸 |
最大扭力 |
無負載轉速 |
耗氣量 |
長度 |
進氣口 |
重量 |
嗓音值 |
|||||
|
mm |
Nm |
ft-lb |
R.P.M |
CFM |
L/min |
Inch |
mm |
P.T |
lb |
kg |
dBA |
|
|
SA3718 |
6 (1/4") |
10 |
7 |
250 |
4.5 |
127 |
11.10 |
282 |
1/4 |
2.77 |
1.26 |
86 |
