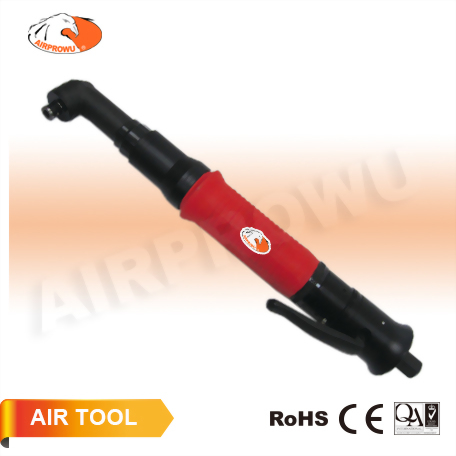

1/4" Hex Drive Auto Shut Off Composite Air Screwdrivers
1/4" Hex Drive Auto Shut Off Composite Air Screwdrivers
( Lever Start Oil-Free Screwdriver )
A-AB Series
● Value Engineered Auto Shut Off Technology
● Ergomomic Composite Housings For Light Weight And Durability
● One Touch Torque Adjustment, Eliminates Difficult Set Up Of Drivers
1/4" Hex Drive Auto Shut Off Composite Air Screwdrivers
( Lever Start Oil-Free Screwdriver )
Angle Type, Lever Start Oil-Free Screwdriver (A-AB Series)
|
Model No. |
Torque |
Free |
Horse |
Air |
Air |
Noise |
Repeatability |
|
Angle |
扭力範圍 |
無負載轉速 |
氣管 |
氣壓 |
耗氣量 |
噪音值 |
- |
|
AB Series |
Kgf-cm |
R.P.M |
mm |
kg/cm2 |
L/s |
± 2dBA |
% |
|
SA-A10AB |
0.5 - 2.0 |
1,000 |
5 |
6 |
3.3 |
70 |
± 3 |
|
SA-A20AB |
1.0 - 8.0 |
1,000 |
5 |
6 |
3.3 |
70 |
± 3 |
|
SA-A30AB |
3.0 - 17 |
1,800 |
5 |
6 |
4.6 |
74 |
± 3 |
|
SA-A35AB |
3.0 - 20 |
2,200 |
5 |
6 |
4.6 |
74 |
± 3 |
|
SA-A38AB |
3.0 - 25 |
1,800 |
5 |
6 |
4.6 |
74 |
± 3 |
|
SA-A40AB |
5.0 - 30 |
1,000 |
5 |
6 |
4.6 |
74 |
± 3 |
|
SA-A45AB |
8.0 - 40 |
800 |
5 |
6 |
5.0 |
78 |
± 3 |
|
SA-A48AB |
5.0 - 45 |
1,700 |
8 |
6 |
9.16 |
78 |
± 3 |
|
SA-A50AB |
7.0 - 50 |
1,400 |
8 |
6 |
9.16 |
78 |
± 3 |
|
SA-A55AB |
7.0 - 65 |
1,000 |
8 |
6 |
9.16 |
78 |
± 3 |
|
SA-A60AB |
15 - 95 |
550 |
8 |
6 |
9.16 |
78 |
± 3 |
|
SA-A65AB |
30 - 180 |
300 |
8 |
6 |
9.16 |
78 |
± 3 |
|
SA-A68AB |
50 - 280 |
250 |
8 |
6 |
9.16 |
78 |
± 3 |
