Volvo Timing Tool Set (9PCS)
Model :
AET-00783K
AET-00783K
Volvo Timing Tool Set (9PCS)
● The comprehensive the setting and locking kit covers the engine
which is fitted to a large range of Ford, Volvo and some Mazda vehicle.
● Contain the time saving tool to correctly align the timing cover on Ford
and Volvo engines and the crankshaft pulley holder for Mazda engine.
Volvo Timing Tool Set (9PCS)
● The comprehensive the setting and locking kit covers the engine
which is fitted to a large range of Ford, Volvo and some Mazda vehicle.
● Contain the time saving tool to correctly align the timing cover on Ford
and Volvo engines and the crankshaft pulley holder for Mazda engine.
AET-00783K
Volvo Timing Tool Set (9PCS)

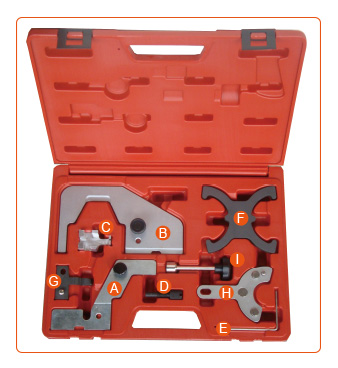

Contents
● 2PCS A,B: Camshaft Alignment Plate
● 1PC C: Crank Sensor Alignment Tool
● 1PC D: Crankshaft Timing Pin
● 1PC E: Tensioner Pin (Ø2 mm)
● 1PC F: Camshaft Sprocket Alignment Plate
● 2PCS G,H: Crankshaft Pulley Alignment Plate
● 1PC I: Crankshaft Pulley Alignment Tool
Application
● Ford: Fiesta (08-15), B-Max (12-15), C-Max (03-07), C-Max (07-10),
C-Max (10-15), Focus (04-11), Focus (11-15), Grand C-Max (10-15),
Touneo Connect (13-15), Grand Touneo Connect (13-15), S-Max (10-15),
Galaxy (10-15), Kuga (13-15), Transit Connect (13-15)
● Volvo: S80 (09-14), V40 (09-14), V40 Cross Country (10-14),
XC60 (09-14), S80 (09-14), V60 (10-14), V70 (09-14), S60 (11-11)
● Mazda: Mazda 5 (CW) (10-15), Mazda 6 (GH) (10-13)
● Engine Code:
1.6: B4164T, B4164T2, B4164T3, HXDA, HXDB, HXJA,
HXJB, IQDA, IQDB, IQJA, JQDA, JQDB, JQGA, JQMA,
JQMB, JTDA, JTDB, JTJA, JTMA, JTWB, MUDA, PNDA,
RVJA, SIDA, U5JA, XTDA
2.0: B4204T6, B4204T7, B4204T7 (MZRDIDSI), MGDA,
MZR 2.0 (LF), R9DA, TNBA, TNBB, TNWA, TNWA,
TPBA, TPWA, ZQDA
