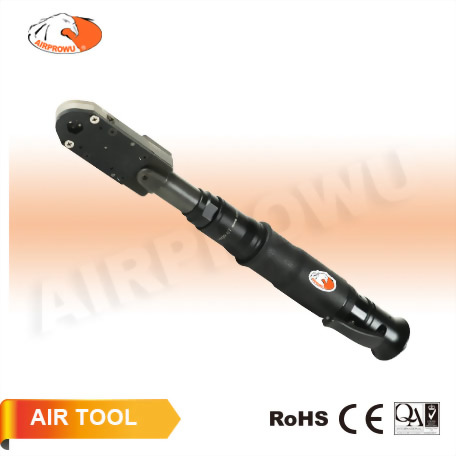

Shut Off Air Close End Wrench (Magnetic Gear Socket)
Model :
SA-CWF10-13
SA-CWF10-13
Shut Off Air Close End Wrench
(w/ Magnetic Gear Socket)
● Torque Range: 7~24 Nm
● Free Speed: 170 RPM
Shut Off Air Close End Wrench
(w/ Magnetic Gear Socket)
● Torque Range: 7~24 Nm
● Free Speed: 170 RPM
SA-CWF10-13
Shut Off Air Close End Wrench
(w/ Magnetic Gear Socket)
Shut Off Air Close End Wrench
(w/ Magnetic Gear Socket)
|
Model No. |
Torque Range |
Free |
Socket |
Head Size |
Net |

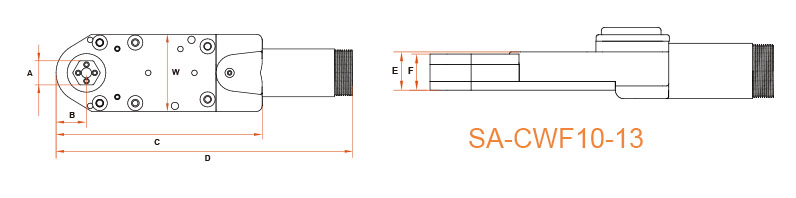

Dimensions |
|||||
|
扭力範圍 |
無負載轉速 |
套筒尺寸 |
閉口外座尺寸 |
重量 |
A |
B |
C |
D |
E |
F |
|
|
Nm |
R.P.M |
mm |
mm |
kg |
mm |
mm |
mm |
mm |
mm |
mm |
|
|
SA-CWF10-13 |
7 - 24 |
170 |
13 |
42 |
2.1 |
13.1 |
16.5 |
112 |
160.8 |
18 |
17 |
SA-CWF10-13
Shut Off Air Close End Wrench
(w/ Magnetic Gear Socket)

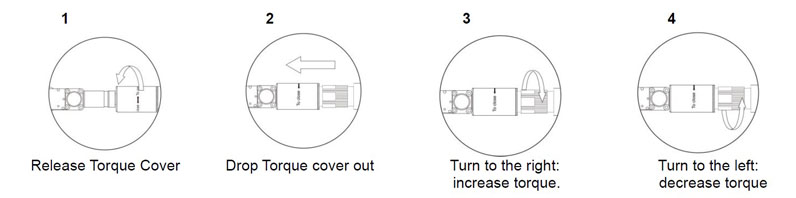

● Torque Adjustment :
- Please adjust t he operating torque by Torque Meter.
- Refer to the below drawing instruction: Release first the Torque cover for torque adjustment,
then tighten necessarily the torque cover before operating.
- For better Torque management, there are also color rings for torque management.
● Turn reverse switch for instantly changing of air motor rotation direction.
Shut Off Air Close End Wrench
(w/ Magnetic Gear Socket)
● Torque Adjustment :
- Please adjust t he operating torque by Torque Meter.
- Refer to the below drawing instruction: Release first the Torque cover for torque adjustment,
then tighten necessarily the torque cover before operating.
- For better Torque management, there are also color rings for torque management.
● Turn reverse switch for instantly changing of air motor rotation direction.
