Setting/Locking Tool Kit 1.0 Ecoboost 3 Cylinder Petrol Engine - Ford (21PCS)
Model :
AET-00782K
AET-00782K
Setting/Locking Tool Kit 1.0 Ecoboost 3 Cylinder Petrol Engine - Ford (21PCS)
● Introduced in 2011, Ford 1.0 turbo, 3 cylinder, Ecoboost (SCTi) petrol engine
fits in the various car and light commercial vehicle across Ford range.
● The engine features a wet timing belt (belt in oil) that runs between the
crankshaft and the twin camshaft VVT sprocket. The timing belt is a
conventional arrangement, the exception is being that the belt is encases
in the engine and runs in oil in a similar set-up as a chain engine.
Setting/Locking Tool Kit 1.0 Ecoboost 3 Cylinder Petrol Engine - Ford (21PCS)
● Introduced in 2011, Ford 1.0 turbo, 3 cylinder, Ecoboost (SCTi) petrol engine
fits in the various car and light commercial vehicle across Ford range.
● The engine features a wet timing belt (belt in oil) that runs between the
crankshaft and the twin camshaft VVT sprocket. The timing belt is a
conventional arrangement, the exception is being that the belt is encases
in the engine and runs in oil in a similar set-up as a chain engine.
AET-00782K
Setting/Locking Tool Kit 1.0 Ecoboost 3 Cylinder Petrol Engine - Ford (21PCS)

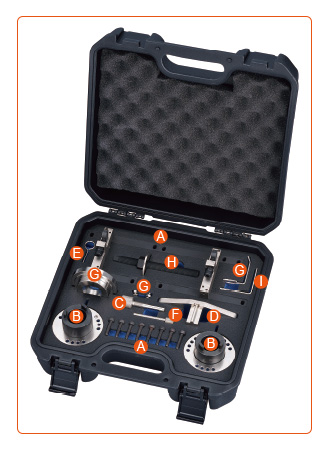

Contents
● 10PCS A: Exhaust/Inlet Camshaft Locking Tool
● 2PCS B: Inlet/Exhaust Camshaft adjuster alignment tool
● 1PC C: Crankshaft Setting Pin
● 1PC D: Flywheel Locking Tool
● 1PC E: Tensioner Locking Pin
● 1PC F: Crankshaft Pulley Positioning Pin
● 3PCS G: Installer, Front Cover Seal
● 1PC H: Installer
● 1PC I: Auxiliary Drive Belt Tensioner Locking Pin
Application
● 1.0 Ecoboost 3 cylinder (belt in oil) petrol engine in:
-Ford: Fiesta, Ecosport, B-Max, Transit Courier, Focus,
Transit Connect, C-Max, Tourneo Connect, Grand C-Max
● Engine Code: M1DA, P4JA, XMJA, M1JA, P4JB, XMJB,
M2DA, SFJA, M2GA, SFJB
Setting/Locking Tool Kit 1.0 Ecoboost 3 Cylinder Petrol Engine - Ford (21PCS)
Contents
● 10PCS A: Exhaust/Inlet Camshaft Locking Tool
● 2PCS B: Inlet/Exhaust Camshaft adjuster alignment tool
● 1PC C: Crankshaft Setting Pin
● 1PC D: Flywheel Locking Tool
● 1PC E: Tensioner Locking Pin
● 1PC F: Crankshaft Pulley Positioning Pin
● 3PCS G: Installer, Front Cover Seal
● 1PC H: Installer
● 1PC I: Auxiliary Drive Belt Tensioner Locking Pin
Application
● 1.0 Ecoboost 3 cylinder (belt in oil) petrol engine in:
-Ford: Fiesta, Ecosport, B-Max, Transit Courier, Focus,
Transit Connect, C-Max, Tourneo Connect, Grand C-Max
● Engine Code: M1DA, P4JA, XMJA, M1JA, P4JB, XMJB,
M2DA, SFJA, M2GA, SFJB
