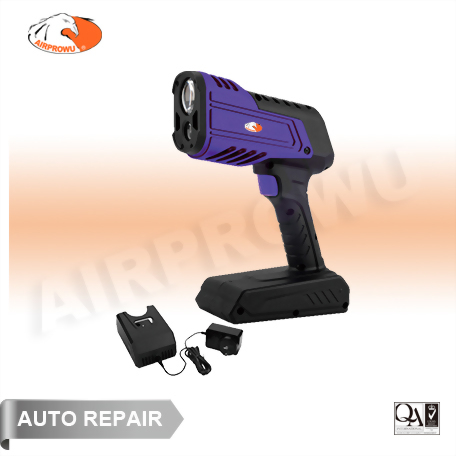

Professional UV Curing Light Kit
Model :
HL-00054KFC
HL-00054KFC NEW
Professional UV Curing Light Kit
● Faster and safer for all automotvie repair and inductrial finishes works which uses
ultraviolet light curable filler, base coat(primer), top coat, and clear coating etc.
● Up to 1s curing time for some UV primer flashing off.
● Powerful irradiance with maximum UV-A intensity of 55,000 μW/cm2 at 20 cm (8 inches).
● Successfully tested on UV paint products by the major paint manufacturers
(PPG, Akzo Nobel,BASF,Axalta,Doppon etc.).
● Only powers and emits UV-A.No harmful UV-B &C.
● Efficient built-in cooling system keep light cool to maintain optimum light output during extended use.
● Wall-Mounted charging station provides more convenient recharging process.
● Efficient ultrasonic range finder function.
Professional UV Curing Light Kit
● Faster and safer for all automotvie repair and inductrial finishes works which uses
ultraviolet light curable filler, base coat(primer), top coat, and clear coating etc.
● Up to 1s curing time for some UV primer flashing off.
● Powerful irradiance with maximum UV-A intensity of 55,000 μW/cm2 at 20 cm (8 inches).
● Successfully tested on UV paint products by the major paint manufacturers
(PPG, Akzo Nobel,BASF,Axalta,Doppon etc.).
● Only powers and emits UV-A.No harmful UV-B &C.
● Efficient built-in cooling system keep light cool to maintain optimum light output during extended use.
● Wall-Mounted charging station provides more convenient recharging process.
● Efficient ultrasonic range finder function.
HL-00054KFC NEW
Professional UV Curing Light Kit
● Light Source: High Power UV LED
● LED Light Watt: 66 Watts
● LED Lifetime: 40,000 Hours
● LED Wavelength: λp=395 +5 nm
● Battery Type: Li-ion 11.1V-5200mAh, 57.72Wh
● Battery Charging Time: 3 Hours
● Battery Charging Info: AC 100-240V - 15V=1.5A
● Running time: 90 Minutes in Total (Max 10 minutes each use)
● Light Body Material: Aluminium+Polyamide
● Cooling System: Passive Thermal Management System enhanced with fan
● Storage temperature: -20°C - +50°C(-4°F-122°F)
● Ultrasonic Range Finder: Max.400cm
● Temperature Control Function: Working ≦ 90°C(194°F)
● Safety Protection Function: Double clicks ≦ 100ms
● Curing Distance: 50mm(2") or 200mm(8")
● Curing Zone Dimensions: 100mm x 100mm(4" x 4")
Professional UV Curing Light Kit
● Light Source: High Power UV LED
● LED Light Watt: 66 Watts
● LED Lifetime: 40,000 Hours
● LED Wavelength: λp=395 +5 nm
● Battery Type: Li-ion 11.1V-5200mAh, 57.72Wh
● Battery Charging Time: 3 Hours
● Battery Charging Info: AC 100-240V - 15V=1.5A
● Running time: 90 Minutes in Total (Max 10 minutes each use)
● Light Body Material: Aluminium+Polyamide
● Cooling System: Passive Thermal Management System enhanced with fan
● Storage temperature: -20°C - +50°C(-4°F-122°F)
● Ultrasonic Range Finder: Max.400cm
● Temperature Control Function: Working ≦ 90°C(194°F)
● Safety Protection Function: Double clicks ≦ 100ms
● Curing Distance: 50mm(2") or 200mm(8")
● Curing Zone Dimensions: 100mm x 100mm(4" x 4")
