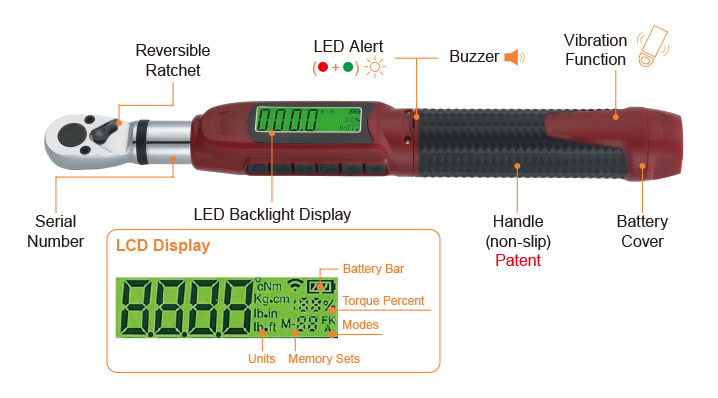

Mini Digital Bit Torque Wrench
Model :
DTRL-SHTB Series
DTRL-SHTB Series
Mini Digital Bit Torque Wrench
● Accuracy: CW: ±3% ; CCW: ±4%
● Units: Nm, Kg.cm, lb-in, lb-ft
● Operating Temperature: -10°C - 60°C
● Storage Temperature: -20°C - 70°C
● Humidity: Up to 90% non-condensing
● Battery: AAA x 2
● Battery Life(standard mode): 1 year
● Battery Life(continuous operation): 110 hrs.
● Drop Test: 1m
● Shaking Test: 10G
● Service life test: 10000 cycles
● Environmental test: PASS
● EMC test: PASS
Mini Digital Bit Torque Wrench
● Accuracy: CW: ±3% ; CCW: ±4%
● Units: Nm, Kg.cm, lb-in, lb-ft
● Operating Temperature: -10°C - 60°C
● Storage Temperature: -20°C - 70°C
● Humidity: Up to 90% non-condensing
● Battery: AAA x 2
● Battery Life(standard mode): 1 year
● Battery Life(continuous operation): 110 hrs.
● Drop Test: 1m
● Shaking Test: 10G
● Service life test: 10000 cycles
● Environmental test: PASS
● EMC test: PASS
|
ITEM NO. |
Driver |
Bit |
Max. |
Setting Range |
Min. |
Max. Torque
Load/ |
Length |
Weight |
|
Nm |
Nm |
Nm |
Nm |
mm |
kg |
|||
|
DTRL-SHTB06 |
1/4" |
Hex |
6 |
0.3 - 6 |
0.01 |
70 / 62 |
244 |
0.2 |
|
DTRL-SHTB15 |
1/4" |
Hex |
15 |
0.75 - 15 |
0.01 |
70 / 62 |
244 |
0.2 |
|
DTRL-SHTB25 |
1/4" |
Hex |
25 |
1.25 - 25 |
0.01 |
70 / 62 |
244 |
0.2 |
