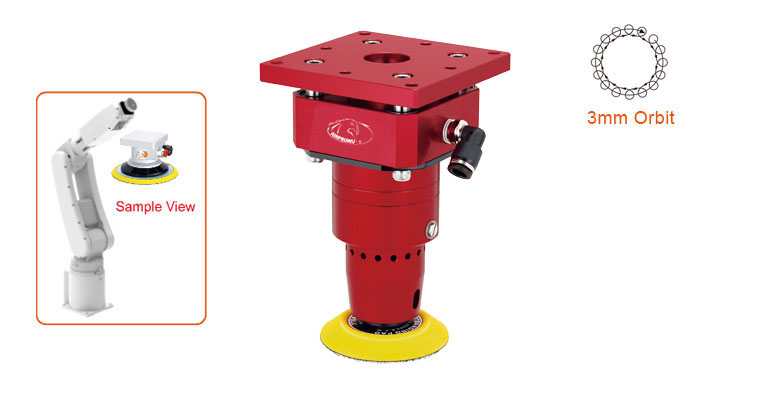

Floating Type Orbital Sander (Work With Robot)
SA45016-3 3" PAD 3mm Orbit
Floating Type Orbital Sander
(Work With Robot)
● Orbit Diameter: 3 mm (3/32")
● Free Speed: 15,000 RPM
● Horse Power: 0.2 HP (150 W)
● Spindle Thread: M6 Female
● Floation Pressure: 38-45 N (Option:48~54 N and 60~70 N)
● Pad Weight: 25 g
● Sound Level: 73 dBA
● Range: 0-5 mm
SA45016-3 3" PAD 3mm Orbit
Floating Type Orbital Sander
(Work With Robot)
|
Model No. |
Pad |
Free |
Net |
Measurement |
Air Inlet |
Air Pressure |
Air |
Hose |
Vibration |
|||||
|
底盤尺寸 |
無負載轉速 |
重量 |
測量尺寸 |
進氣口 |
空氣壓力 |
耗氣量 |
氣管 |
振動值 |
||||||
|
Inch |
RPM |
lb |
kg |
H |
L |
NPT(PT) |
psi |
bar |
CFM |
L/min |
Inch |
mm |
m/sec2 |
|
|
SA45016-2 |
2 |
15,000 |
3.67 |
1.67 |
165 |
100 |
8 mm |
90 |
6.3 |
14.1 |
399 |
3/16 |
5 |
<2.5 |
|
SA45016-3 |
3 |
15,000 |
3.67 |
1.67 |
165 |
100 |
8 mm |
90 |
6.3 |
14.1 |
399 |
3/16 |
5 |
<2.5 |
