Extra Long Combination Wrench
W5402 Series SAE
Extra Long Combination Wrench
● Meets ANSI, 40CRV, U.S.A, ASIA
|

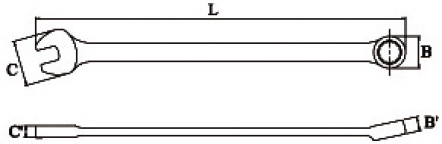

ITEM NO. |
SIZE |
L |
C |
B |
C' |
B' |
WT |
||
|
MM |
SAE |
MM |
Inch |
mm |
mm |
mm |
mm |
mm |
g |
|
W540106 |
W540206 |
6 |
1/4 |
128 |
15 |
10.5 |
4.1 |
5 |
21 |
|
W540107 |
|
7 |
|
138 |
15.6 |
11.6 |
4.4 |
5.3 |
26 |
|
W540108 |
W540208 |
8 |
5/16 |
148 |
18.9 |
12.6 |
4.7 |
5.7 |
32 |
|
W540109 |
|
9 |
|
160 |
20.8 |
13.9 |
4.9 |
6.2 |
38 |
|
W540110 |
W540210 |
10 |
3/8 |
167 |
22 |
15.1 |
5.4 |
6.8 |
40 |
|
W540111 |
W540211 |
11 |
7/16 |
186 |
25.3 |
16.7 |
6 |
7.4 |
60 |
|
W540112 |
|
12 |
|
196 |
27.6 |
18.3 |
6.6 |
8 |
80 |
|
W540113 |
W540213 |
13 |
1/2 |
205 |
28.6 |
18.8 |
7 |
8.6 |
100 |
|
W540114 |
W540214 |
14 |
9/16 |
223 |
31.5 |
21.5 |
7.4 |
9.4 |
120 |
|
W540115 |
|
15 |
|
233 |
33 |
22.7 |
7.7 |
10 |
140 |
|
W540116 |
W540216 |
16 |
5/8 |
243 |
33.7 |
23.8 |
8.1 |
10.6 |
160 |
|
W540117 |
W540217 |
17 |
11/16 |
262 |
36.6 |
25.5 |
8.4 |
11.4 |
200 |
|
W540118 |
|
18 |
|
272 |
38.4 |
27 |
8.7 |
12.2 |
220 |
|
W540119 |
W540219 |
19 |
3/4 |
281 |
40.2 |
28.5 |
9 |
13 |
240 |
|
W540120 |
|
20 |
|
301 |
43.2 |
30.2 |
9.2 |
13.8 |
300 |
|
W540121 |
W540221 |
21 |
13/16 |
301 |
43.2 |
30.2 |
9.4 |
13.8 |
300 |
|
W540122 |
W540222 |
22 |
7/8 |
319 |
46.5 |
32.7 |
9.8 |
14.6 |
320 |
|
W540123 |
|
23 |
|
329 |
48.1 |
33.8 |
10.2 |
15.5 |
400 |
|
W540124 |
W540224 |
24 |
15/16 |
339 |
49.7 |
34.8 |
10.5 |
16 |
470 |
|
W540125 |
W540225 |
25 |
1 |
373 |
52.9 |
37 |
11.3 |
17.2 |
620 |
|
W540126 |
|
26 |
|
373 |
52.9 |
37 |
11.3 |
17.2 |
620 |
|
W540127 |
W540227 |
27 |
1-1/16 |
388 |
56.1 |
39.3 |
12.2 |
18.6 |
700 |
|
W540128 |
|
28 |
|
404 |
59.2 |
41.4 |
13 |
19.8 |
820 |
|
W540129 |
W540229 |
29 |
1-1/8 |
404 |
59.2 |
41.4 |
13 |
19.8 |
820 |
|
W540130 |
W540230 |
30 |
1-3/16 |
404 |
59.2 |
41.4 |
13 |
19.8 |
820 |
|
W540132 |
W540232 |
32 |
1-1/4 |
431 |
65.6 |
46 |
14.4 |
22 |
1000 |
