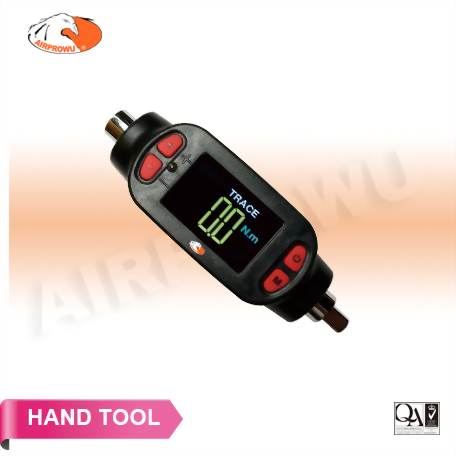

Electronic Torque Adapter
Model :
DTA-FO Series
DTA-FO Series NEW
Electronic Torque Adapter
● 50 data sets of memory capacity.
● 3 LEDs green(-20%) / red(100%) / orange(+20%) for visual alerting.
● Standard functions: torque setting, measurement setting, mode setting.
● Operation in both clockwise and counter-clockwise directions.
● Multicolor LCD display shows kg-cm, lb-in, lb-ft, Nm.
● Audible torque confirmation by means of buzzer.
● Easy to set up Peak or Trace modes.
● Anti-slip soft grip.
Electronic Torque Adapter
● 50 data sets of memory capacity.
● 3 LEDs green(-20%) / red(100%) / orange(+20%) for visual alerting.
● Standard functions: torque setting, measurement setting, mode setting.
● Operation in both clockwise and counter-clockwise directions.
● Multicolor LCD display shows kg-cm, lb-in, lb-ft, Nm.
● Audible torque confirmation by means of buzzer.
● Easy to set up Peak or Trace modes.
● Anti-slip soft grip.
DTA-FO Series NEW
Electronic Torque Adapter
● Digit: 0.1
● Memory: 50 data sets of memory capacity
● Operation Modes: Peak or Trace
● Unit Selection: Kg-cm, lb-in, lb-ft, Nm
● Battery: AAA DC 1.5V x 2 PCS
● Operation Temperature: -10°C - 60°C (13.9°F - 139.9°F)
● Storage Humidity: -20°C - 70°C (-4°F - 157.9°F)
● Operation Humidity: 15 - 90%
● Auto Turn-Off: After 80 seconds of no use
● Hand Use Only.
Electronic Torque Adapter
● Digit: 0.1
● Memory: 50 data sets of memory capacity
● Operation Modes: Peak or Trace
● Unit Selection: Kg-cm, lb-in, lb-ft, Nm
● Battery: AAA DC 1.5V x 2 PCS
● Operation Temperature: -10°C - 60°C (13.9°F - 139.9°F)
● Storage Humidity: -20°C - 70°C (-4°F - 157.9°F)
● Operation Humidity: 15 - 90%
● Auto Turn-Off: After 80 seconds of no use
● Hand Use Only.
|
ITEM NO. |
Square |
Display Range |
Accuracy |
Adapter Size |
Weight |
|
mm |
kg |
||||
|
DTA-30-FO |
1/4" |
6 - 30 Nm |
±4% |
105 x 35 x 39 |
0.28 |
|
DTA-135-FO |
3/8" |
27 - 135 Nm |
±2% |
105 x 35 x 39 |
0.32 |
|
DTA-200-FO |
1/2" |
40 - 200 Nm |
±2% |
125 x 35 x 39 |
0.35 |
