  • Air Riveter Nut Tool

Air Riveter Nut Tool

Model : SA8923B/ SA8924B/ SA8925B/ SA8926B

SA8923B     200 RPM
SA8924B     360 RPM
SA8925B     550 RPM
SA8926B   1500 RPM
Air Riveter Nut Tool
w/ Comfort Grip

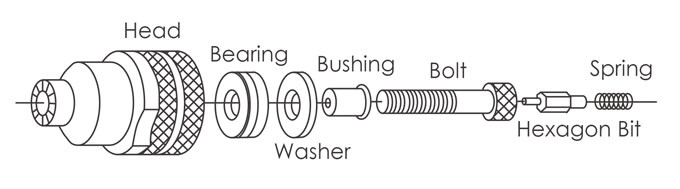

"B" Type Nose Head
● Turn the nose head clockwise to remove it,
    turn counterclockwise to fit new nose head.



SA8923B     200 RPM
SA8924B     360 RPM
SA8925B     550 RPM
SA8926B   1500 RPM
Air Riveter Nut Tool
w/ Comfort Grip

Model No.

Capacity

Free
Speed

Net Weight

Overall Length

Air Cons

Air Inlet

Hose Size

Sound Level

拉帽能力

無負載
轉速

重量

長度

耗氣量

進氣口

氣管尺寸

 嗓音

-

RPM

lb

kg

Inch

mm

CFM

L/min

NPT

Inch

dBA

SA8923B

M10(3/8"-16, 3/8"-24) , M12(1/2"-13)

200

2.7

1.25

8.66

220

5

142

1/4"

3/8

88

SA8924B

M6(1/4-20), M8(5/16"-18), M10(3/8"-16, 3/8"-24)

360

2.7

1.25

8.27

210

5

142

1/4"

3/8

88

SA8925B

M5(#10-24, #10-32), M6(1/4"-20)

550

2.7

1.25

7.87

200

5

142

1/4"

3/8

88

SA8926B

M3(#6-32, M4(#8-32) M5(#10.24, #10-32), M6(1/4"-20)

1500

2.1

0.95

7.28

185

5

142

1/4"

3/8

88
