3/32" ~ 5/32" Air Hydraulic Riveter w/ Vacuum Mandrel Collection System
Model :
SA8874V-02L
SA8874V-02L 3/32" ~ 5/32"
Air Hydraulic Riveter
w/ Vacuum Mandrel Collection System
● Nose Pieces: 2.4,3.2,4.0 mm
● Max. Rivet Capacity: (Stainless) 3.2 mm
(Aluminum & Steel) 4.0 mm
● Avg-air Cons.:
Body 0.08 m3/min, Shooter 0~0.15 m3/min
● Width x Height: 145 x 235 mm
Optional

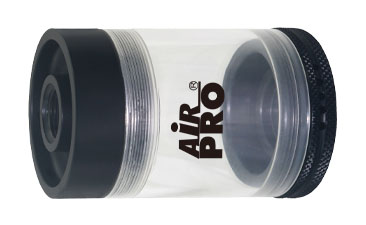

SA8874V-MCC
Vacuum Mandrel Collection
● FOR SA8874V, SA8874V-02L,
SA8805AV, SA8805ASV,
SA8806V, SA8808V.
Air Hydraulic Riveter
w/ Vacuum Mandrel Collection System
● Nose Pieces: 2.4,3.2,4.0 mm
● Max. Rivet Capacity: (Stainless) 3.2 mm
(Aluminum & Steel) 4.0 mm
● Avg-air Cons.:
Body 0.08 m3/min, Shooter 0~0.15 m3/min
● Width x Height: 145 x 235 mm
Optional
SA8874V-MCC
Vacuum Mandrel Collection
● FOR SA8874V, SA8874V-02L,
SA8805AV, SA8805ASV,
SA8806V, SA8808V.
SA8874V-02L 3/32" ~ 5/32"
Air Hydraulic Riveter
w/ Vacuum Mandrel Collection System
● Packing : 6pcs/ctn/ 2.3 cuft /N.W.:7.0/ G.W.: 8.0 kg
Air Hydraulic Riveter
w/ Vacuum Mandrel Collection System
● Packing : 6pcs/ctn/ 2.3 cuft /N.W.:7.0/ G.W.: 8.0 kg
|
Model No. |
Rivet Capacity |
Traction |
Stroke |
Net |
Air |
Air Pressure |
|||||
|
拉釘規格 |
拉力 |
行程 |
重量 |
進氣口 |
空氣壓力 |
||||||
|
Inch |
mm |
lb.f |
kg.f |
inch |
mm |
lb |
kg |
NPT(PT) |
psi |
bar |
|
|
SA8874V-02L |
3/32",1/8", 5/32" |
2.4,3.2,4.0 |
1,532 |
695 |
0.66 |
17 |
2.31 |
1.05 |
1/4" |
78-85 |
5.5-5.9 |
