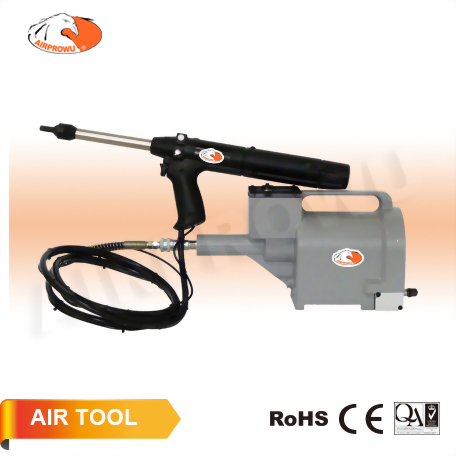

3/16" Speed Riveter
Speed Riveter
w/ 1PC Front Jaw, Manderls & Spring
● Mandrels Size: 2.4, 3.2, 4.0, 4.8 mm
● Nut Material: Aluminum, Steel, Brass & Stainless
● Vibration: >2.7 m/s2
● Noise Level: 70 dBA
● Free Air Volume Required: 2.6 Liters
● Overall Length: 475 mm
● Intensifaction Ratio: 30:1
● Cycle Time Approximately: 1 Second
Speed Riveter
w/ 1PC Front Jaw, Manderls & Spring
|
|
2.4 mm |
3.0 mm |
3.2 mm |
3.5 mm |
4.0 mm |
4.8 mm |
|
Speed Rivet |
Alum., Brass |
N/A |
Alum., Steel, |
N/A |
Alum., Steel, |
Alum., Steel, |
|
Speed Chovet |
Alum., Brass |
N/A |
Alum., Steel |
N/A |
Alum., Steel |
Alum., Steel |
|
Speed Screw |
N/A |
Steel |
N/A |
Steel |
N/A |
N/A |
|
Model No. |
Rivet Capacity |
Pull Force |
Stroke |
Net |
Air Pressure |
|||||
|
拉釘規格 |
拉力 |
行程 |
重量 |
空氣壓力 |
||||||
|
Inch |
mm |
lb.f |
kg.f |
inch |
mm |
lb |
kg |
psi |
bar |
|
|
SA88136 |
3/32", 1/8", 5/32", 3/16" |
2.4, 3.2, 4.0, 4.8 |
874 |
389 |
1-3/16 |
30 |
2.38 |
1.08 |
72.6 - 101.6 |
5 - 7 |
Speed Riveter
w/ 1PC Front Jaw, Manderls & Spring
Features:
● Can be used in areas with restriced operator space
● Available with in-line handle and top or bottom hose configuration-
optimized ergonomic performance for improved productivity.
● Average cycle time of less than 2 seconds- increased productivity
- up to 1500 fasteners per hour.
● High capacity, magazine fed fasteners - reduced component
handling and subsequent spillage.
● Lightweight construction and zero action recoil - reduced operator fatigue.
● Long life, Self-priming intensifer - consistent actuation and hence joint formation.
● Long reach barrel - can be used in many difficult access applications.
● Low maintenance hand tool - productive time is maximized
- no requirement for specialist maintenance training.
● Robust & durable construction - suitable for most industrial environments.
