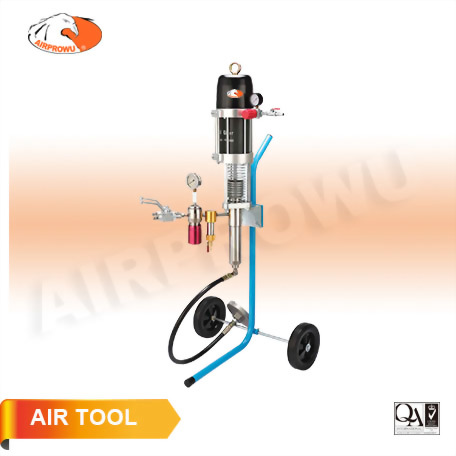

20:1 Air Piston Pump
Model :
PP2050-6
PP2050-6
20:1 Air Piston Pump
● Large diameter suction rod and high compression ratio
● Simple design, reduced number of spare parts.
● Compatible with water-based materials
● Can be used with a wide range of materials
● Easy maintenance
● One set is use in adjustment the pump actuation pressure.
The other set can in spray gun.
20:1 Air Piston Pump
● Large diameter suction rod and high compression ratio
● Simple design, reduced number of spare parts.
● Compatible with water-based materials
● Can be used with a wide range of materials
● Easy maintenance
● One set is use in adjustment the pump actuation pressure.
The other set can in spray gun.
PP2050-6
20:1 Air Piston Pump
● Presssure Ratio: 20:1
● Fluid volume per cycle: 90cm3
● Number of cycle per liter of products: 11
● Fluid output at 30 cycles/min: 2.7 l/min
● Free flow rate 5.4 l/min
● Air Consumption at 30 cycles/min at 4 bar: 20m3/h
● Max Air Inlet Presssure: 6 bar
● Max Fluid Presssure: 120 bar
● Max Fluid Temperature: 60°C
● Sound level: 78dBA
● Weight: 16.8kg
● Wetted parts: Stainless Steel
● Dimension: 115 x 54 x 60 cm
Contents
20:1 Air Piston Pump
● Presssure Ratio: 20:1
● Fluid volume per cycle: 90cm3
● Number of cycle per liter of products: 11
● Fluid output at 30 cycles/min: 2.7 l/min
● Free flow rate 5.4 l/min
● Air Consumption at 30 cycles/min at 4 bar: 20m3/h
● Max Air Inlet Presssure: 6 bar
● Max Fluid Presssure: 120 bar
● Max Fluid Temperature: 60°C
● Sound level: 78dBA
● Weight: 16.8kg
● Wetted parts: Stainless Steel
● Dimension: 115 x 54 x 60 cm
Contents
● 1SET Air piston pump
● 1SET Cart
● 1PC Paint filter
● 1PC Paint regulator
● 2PCS 1/4" ball valve
● 1SET Cart
● 1PC Paint filter
● 1PC Paint regulator
● 2PCS 1/4" ball valve
