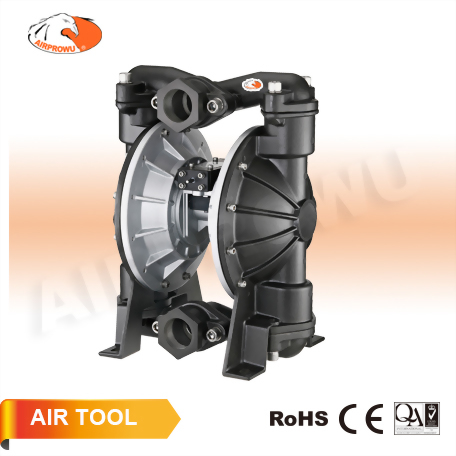

VAP-A50UO
2" Double Diaphragm Pump
(Aluminum Alloy Pump)


● Liquid Inlet & Outlet: 2" NPT
● Air Inlet & Outlet: 1/2" NPT
● Material: UPE
● Wetted & Center Body: Aluminum
● Pipe Type: Center
● Ball Cover: Aluminum
● Ball: PTFE
● Ball Seat: Stainless Steel
● Certificates: CE/ Ex II 2 GD c IIB T4~T5

VAP-A50UO
2" Double Diaphragm Pump
(Aluminum Alloy Pump)


● Dimension: (L)43 x (W)34 x (H)54 cm
● Min. Pressure: 1.2 Bar(kgf/cm2); 17.4 psi
● Max. Pressure: 8.3 Bar(kgf/cm2); 120 psi
● Working Pressure Advised: 2.0~5.5 Bar(kgf/cm2); 29~79.75 psi
● Quantity/ Cycle: 2.5 L
● Air Cons.: 3600 L/min (127.08 SCFM)
● Solid Limit: Φ6.4~8.0mm
● Inlet Lift (Deep): 6 m-Wet / 3.7 m-Dry
● Max Flow Rate: 147.75 GPM (560 LPM)
● Weight: 28 kg
