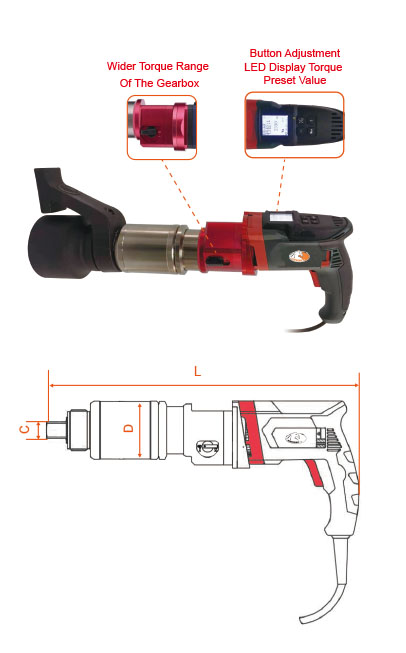

2-1/2" Digital Display Straight Handle Electric Torque Wrench
Model :
SEIW22200S-SFC
SEIW22200S-SFC 2-1/2"
Digital Display Straight Handle Electric Torque Wrench
● Wide voltage motor: 220V-240V, 50-60Hz single-phase AC; it can be used underdifferent
national grids (please inform the country of use voltage and frequency before purchasing).
● High-definition color LCD display: setting torque, angle, group count, standard bolt torque
recommendation,fault alarm, over-temperature alarm, torque record and other information.
● Key preset torque, angle, etc. reach the set value and stop automatically.
● Continuous rotation without impact, automatic stop when reaching the set torque value and
angle, the efficiency is much higher than that of intermittently driven hydraulic wrench.
● Intelligent torque control system with smart chips and sensors as the core, with fault
self-check function, power-dowm memory function, data recording function and the accuracy
is up to ±5%.
● Multiple modes: torque + angle mode, angle + torque limit mode, direct torque setting mode,
system recommended torque mode according to bolt parameters, preset mode (convenient to
directly switch common torque on site) and on-site calibration mode.
● Multi-level passwords: In order to ensure the controllability of the operation, multi-level passwords
can be set.
● Man-machine interface, the LCD screen directly displays the torque value and angle value;
there is no need to check the "torque comparison table" for analog conversion.
● Double overload protection, electronic anti-over-torque system and torque overload clutch,
effectively protect transmission parts.
● Two-speed design, the wrench can be switched between high and low speeds to improve
work efficiency.
Digital Display Straight Handle Electric Torque Wrench
● Wide voltage motor: 220V-240V, 50-60Hz single-phase AC; it can be used underdifferent
national grids (please inform the country of use voltage and frequency before purchasing).
● High-definition color LCD display: setting torque, angle, group count, standard bolt torque
recommendation,fault alarm, over-temperature alarm, torque record and other information.
● Key preset torque, angle, etc. reach the set value and stop automatically.
● Continuous rotation without impact, automatic stop when reaching the set torque value and
angle, the efficiency is much higher than that of intermittently driven hydraulic wrench.
● Intelligent torque control system with smart chips and sensors as the core, with fault
self-check function, power-dowm memory function, data recording function and the accuracy
is up to ±5%.
● Multiple modes: torque + angle mode, angle + torque limit mode, direct torque setting mode,
system recommended torque mode according to bolt parameters, preset mode (convenient to
directly switch common torque on site) and on-site calibration mode.
● Multi-level passwords: In order to ensure the controllability of the operation, multi-level passwords
can be set.
● Man-machine interface, the LCD screen directly displays the torque value and angle value;
there is no need to check the "torque comparison table" for analog conversion.
● Double overload protection, electronic anti-over-torque system and torque overload clutch,
effectively protect transmission parts.
● Two-speed design, the wrench can be switched between high and low speeds to improve
work efficiency.
SEIW22200S-SFC 2-1/2"
Digital Display Straight Handle Electric Torque Wrench
Contents
● 1PC Electric Torque Wrench
● 1PC Reaction Arm Ring
● 1PC Metal Box
Digital Display Straight Handle Electric Torque Wrench
Contents
● 1PC Electric Torque Wrench
● 1PC Reaction Arm Ring
● 1PC Metal Box
|
Model No. |
Torque |
Wide Voltages |
Square |
Outer |
Length |
No-load |
Weight |
Packing |
|
|
Nm |
V |
Hz |
C (Inch) |
D (mm) |
L (mm) |
R.P.M |
kg |
Set/ Ctn/ G.W/ N.W/ Cuft (kgs) |
|
|
SEIW22200S-SFC |
5000-20000 |
220-240 |
50-60 |
2-1/2 |
175 |
650 |
0.8 |
26.0 |
1/Ctn/ 45.0 / 44.0/ 1.45' |
