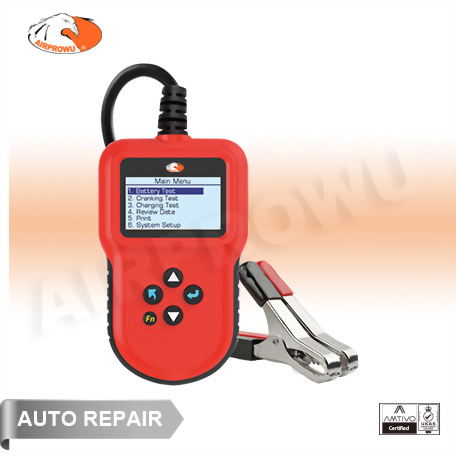

12V Lead-Acid & LiFePO4 Battery Tester
Model :
ADT-00124FC
ADT-00124FC NEW 0725
12V Lead-Acid & LiFePO4 Battery Tester
● Test 12V lead-acid battery and LiFePO4 engine starting battery.
● Test the CCA (cold cranking amps)/internal resistance/
voltage/State of Charge/State of Health.
● Test the 12V starting system and charging system.
● Automatically save the last test result for review.
● Print test results by connecting to a computer.
● Unique custom fast key Fn, you can set
one-button test or one-button voltmeter mode.
● With reverse connection protection and short circuit protection.
● Automatic temperature compensation.
12V Lead-Acid & LiFePO4 Battery Tester
● Test 12V lead-acid battery and LiFePO4 engine starting battery.
● Test the CCA (cold cranking amps)/internal resistance/
voltage/State of Charge/State of Health.
● Test the 12V starting system and charging system.
● Automatically save the last test result for review.
● Print test results by connecting to a computer.
● Unique custom fast key Fn, you can set
one-button test or one-button voltmeter mode.
● With reverse connection protection and short circuit protection.
● Automatic temperature compensation.
ADT-00124FC NEW 0725
12V Lead-Acid & LiFePO4 Battery Tester
● Language: English, French, German, Spanish, Italian, Dutch
● Application: All 12V lead-acid battery and LiFePO4 engine starting batteries
● Test Standard and Range:
- lead-acid batteries:
JIS(26A17-245H528),
CCA/BCI/CA/MCA/EN/SAE(100-2000)
DIN/IEC(100-1400), GB(30-220Ah)
- LiFePO4 batteries:
JIS(26A17-150F51),
CCA/BCI/CA/MCA/EN/SAE(20-1000),
DIN/IEC(20-700), GB(20-120Ah)
● Input Voltage: 8V~30V
● Operating Temperature: -10℃~60℃ (14℉~140℉)
● Storage Temperature: -20℃~70℃ (-4℉~158℉)
12V Lead-Acid & LiFePO4 Battery Tester
● Language: English, French, German, Spanish, Italian, Dutch
● Application: All 12V lead-acid battery and LiFePO4 engine starting batteries
● Test Standard and Range:
- lead-acid batteries:
JIS(26A17-245H528),
CCA/BCI/CA/MCA/EN/SAE(100-2000)
DIN/IEC(100-1400), GB(30-220Ah)
- LiFePO4 batteries:
JIS(26A17-150F51),
CCA/BCI/CA/MCA/EN/SAE(20-1000),
DIN/IEC(20-700), GB(20-120Ah)
● Input Voltage: 8V~30V
● Operating Temperature: -10℃~60℃ (14℉~140℉)
● Storage Temperature: -20℃~70℃ (-4℉~158℉)
