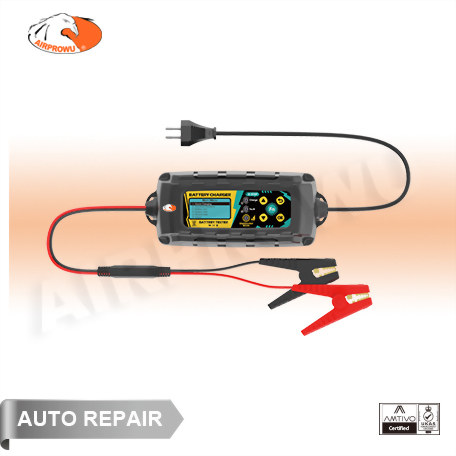

12V Battery Charger
Model :
ADT-00134FC
ADT-00134FC NEW 0725
12V Battery Charger
● 8-step smart charger, which can charge various 12V lead-acid batteries.
● Test the CCA value and health status of the 12V lead-acid battery.
● Test the cranking system and alternator system of the vehicle.
● The shortcut key “Fn” can be set to battery one-key quick test or one-key quick charging function.
● The maximum charging current can be set to 5A/3A/1A.
● Smart Unattended Mode, which can stay connected for a long time.
● With IP65 waterproof, the charger can be used in wet environment.
● Provides battery repair mode.
● The output power is automatically reduced when the charger temperature is too high.
● Built-in high and low temperature compensation mechanism,
automatically start winter or summer working mode.
● Built-in overvoltage, overcurrent, overheating and reverse polarity protection functions,
anti-overcharge, anti-overdischarge
12V Battery Charger
● 8-step smart charger, which can charge various 12V lead-acid batteries.
● Test the CCA value and health status of the 12V lead-acid battery.
● Test the cranking system and alternator system of the vehicle.
● The shortcut key “Fn” can be set to battery one-key quick test or one-key quick charging function.
● The maximum charging current can be set to 5A/3A/1A.
● Smart Unattended Mode, which can stay connected for a long time.
● With IP65 waterproof, the charger can be used in wet environment.
● Provides battery repair mode.
● The output power is automatically reduced when the charger temperature is too high.
● Built-in high and low temperature compensation mechanism,
automatically start winter or summer working mode.
● Built-in overvoltage, overcurrent, overheating and reverse polarity protection functions,
anti-overcharge, anti-overdischarge
ADT-00134FC NEW 0725
12V Battery Charger
● Input: 220-240V-AC/50-60Hz
● Charging Voltage: Motorcycle and car: 14.4V,
AGM: 14.7V, Repair: 15.8V, Float: 13.6V
● Minimum Battery Voltage: 2V
● AC Input Current: 1.25A rms (At maximum charging current)
● Ripple: <4%
● Working Temperature: -20 °C~70 °C (-4 °F~158 °F )
● Safety: overvoltage protection, overcurrent protection,
overheat protection, reverse connection protection,
anti-overcharge, anti-overdischarge
● Charging Type: 8-step, fully automatic charging cycle
● Battery Type: All types of 12V lead-acid batteries
(WET, MF, Ca/Ca, AGM and GEL)
● Battery Capacity: 1.2-160Ah
● Protection Class: IP65
● Temperature Compensation:
Built-in charging voltage compensation
according to ambient temperature
● Maximum Charging Current: 5A, 3A, 1A
● Max Current of Unattended Mode: 2.5A, 1.5A, 0.5A
● Reverse Leakage Current: 60mA/h
