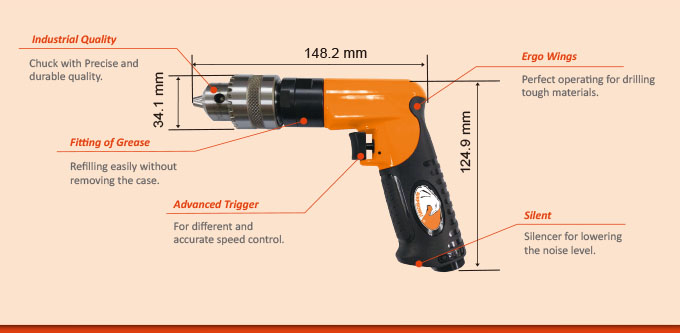

1/4" Mini Air Industrial Drill

Model : SA67022A(-NC)/ SA67022B(-NC)/ SA67022C(-NC)/ SA67022D(-NC)/ SA67022E(-NC)

Q'ty :

SA67022A 1,000 RPM Aircraft
SA67022B 3,000 RPM
SA67022C 4,200 RPM
SA67022D 6,000 RPM
SA67022E 23,000 RPM
1/4" Mini Air Industrial Drill
w/ Yukiwa Chuck

SA67022A-NC 1,000 RPM
SA67022B-NC 3,000 RPM
SA67022C-NC 4,200 RPM
SA67022D-NC 6,000 RPM
SA67022E-NC 23,000 RPM
1/4" Mini Air Industrial Drill
w/o Chuck

● Round Out: 0.08mm
● Horse Power 0.4HP (298W)
● Sound Pressure: 76-77 dBA
● Spindle: 3/8"-24
● For Stainless Steel, Alum. & Wood

Model No.	Chuck Size		Horse Power		Free Speed	Net Weight		Overall Length		Air Inlet	Air Pressure		Air Cons.		Hose Size		Sound Level
	夾頭尺寸		馬力		無負載轉速	重量		長度		進氣口	空氣壓力		耗氣量		氣管		嗓音值
	Inch	mm	HP	W	R.P.M	lb	kg	Inch	mm	NPT(PT)	psi	bar	CFM	L/min	Inch	mm	dBA
SA67022A(-NC)	1/4	6	0.4	224	1,000	1.69	0.766	7.24	184	1/4"	90	6.2	3.7	104.7	3/8	10	77
SA67022B(-NC)					3,000	1.55	0.705	6.77	172								76
SA67022C(-NC)					4,200	1.56	0.709	6.77	172								76
SA67022D(-NC)					1,000	1.69	0.766	7.24	184								76
SA67022E(-NC)					3,000	1.55	0.705	6.77	172								79
