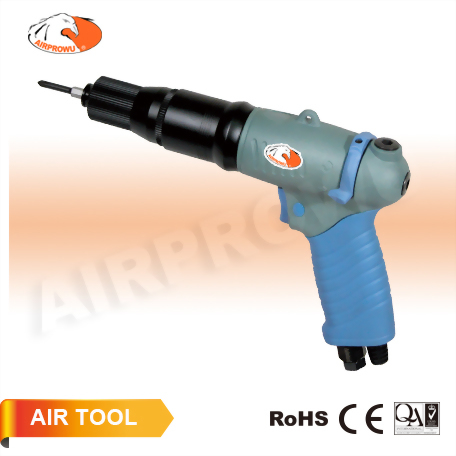

1/4" Hex Drive Composite Handle Pistol Grip Shut Off Air Screwdrivers
1/4" Hex Drive Composite Handle Pistol Grip Shut Off Air Screwdrivers
( Pistol Type Screwdriver- Push Start or Push & Trigger Start Shut Off )
R-PBP Series
● Push-to-Start system eliminates troublesome to press throttle button.
● Patented trigger lock feature.
(1) Press bit first then press trigger to safe avoid the damage of cross screw.
(2) Refer to operation chart to LOCK trigger for rapid screwing.
1/4" Hex Drive Composite Handle Pistol Grip Shut Off Air Screwdrivers
( Pistol Type Screwdriver- Push Start or Push & Trigger Start Shut Off )
R-PBP Series Pistol Handle Screwdriver- Push Start or Push & Trigger Start Shut Off
|
Model |
Free |
Net |
Overall |
Diameter |
Noise |
Mini |
Air |
Torque Range |
Standard |
Fastening Capacity |
||||
|
Machine |
Tapping |
|||||||||||||
|
無負載轉速 |
重量 |
長度 |
把手外徑 |
噪音值 |
氣管 |
耗氣量 |
扭矩範圍 |
扭矩精度 |
機械螺絲 |
自攻螺絲 |
||||
|
R.P.M |
lb |
kg |
Inch |
mm |
Inch |
mm |
Kg/cm2 |
mm |
m3/min |
Kgf-cm |
% |
T |
2.0T |
|
|
SA-R35PBP |
2,200 |
1.41 |
0.64 |
7.48 |
190 |
1.34 |
35 |
6 |
5 |
0.28 |
3 - 20 |
±3 |
M2.2 - M4.5 |
M1.7 - M3.5 |
|
SA-R38PBP |
1,800 |
1.41 |
0.64 |
7.48 |
190 |
1.34 |
35 |
6 |
5 |
0.28 |
3 - 25 |
±3 |
M2.2 - M4.7 |
M1.7 - M3.8 |
|
SA-R41PBP |
1,000 |
1.41 |
0.64 |
7.48 |
190 |
1.34 |
35 |
6 |
5 |
0.28 |
5 - 35 |
±3 |
M2.8 - M5.2 |
M2.2 - M4.2 |
|
SA-R45PBP |
800 |
1.41 |
0.64 |
7.48 |
190 |
1.34 |
35 |
6 |
5 |
0.28 |
8 - 45 |
±3 |
M3.3 - M5.7 |
M2.7 - M4.4 |
|
SA-R47PBP |
550 |
1.41 |
0.64 |
7.48 |
190 |
1.34 |
35 |
6 |
5 |
0.28 |
10 - 50 |
±3 |
M3.6 - M6.0 |
M2.8 - M4.7 |
|
SA-R48PBP |
1,700 |
2.17 |
0.98 |
8.66 |
220 |
1.69 |
43 |
6 |
8 |
0.55 |
7 - 50 |
±3 |
M2.9 - M6.0 |
M2.6 - M4.9 |
|
SA-R481PBP |
2,200 |
2.17 |
0.98 |
8.66 |
220 |
1.69 |
43 |
6 |
8 |
0.55 |
10 - 60 |
±3 |
M3.6 - M6.2 |
M2.8 - M5.1 |
|
SA-R50PBP |
1,400 |
2.17 |
0.98 |
8.66 |
220 |
1.69 |
43 |
6 |
8 |
0.55 |
10 - 60 |
±3 |
M3.6 - M6.2 |
M2.8 - M5.1 |
|
SA-R55PBP |
1,000 |
2.17 |
0.98 |
8.66 |
220 |
1.69 |
43 |
6 |
8 |
0.55 |
12 - 75 |
±3 |
M3.8 - M6.6 |
M3.0 - M5.6 |
|
SA-R60PBP |
550 |
2.17 |
0.98 |
8.66 |
220 |
1.69 |
43 |
6 |
8 |
0.55 |
30 - 110 |
±3 |
M5.0 - M7.3 |
M4.0 - M6.2 |
|
SA-R65PBP |
300 |
2.43 |
1.1 |
8.66 |
220 |
1.69 |
43 |
6 |
8 |
0.55 |
30 - 180 |
±3 |
M5.0 - M9.3 |
M4.0 - M7.2 |
|
SA-R68PBP |
250 |
2.76 |
1.25 |
8.66 |
220 |
1.69 |
43 |
6 |
8 |
0.55 |
50 - 280 |
±3 |
M6.0 - M10.8 |
M4.8 - M8.6 |
1/4" Hex Drive Composite Handle Pistol Grip Shut Off Air Screwdrivers
( Pistol Type Screwdriver- Push Start or Push & Trigger Start Shut Off )
R-PBP Series
● Easy to switch the direction by single hand.
● Air motor will automatically stop when the load reaches at the pre-set torque.
● Patent MSC clutch system- The one pulses has the merits of low vibration(less than 2.5ms) and
low torque deviation(±3%).
● Low Weight: All new patent mechanical design and grip material- 25%~44% lighter than other brand.
● Outside- Adjust the torque rapidly: Turn right to increase and left to decrease.
● Comfort: Soft resin ergonomic grip- Advanced "Composite" ergonomic dual color design, best balance
and easy to trip.
