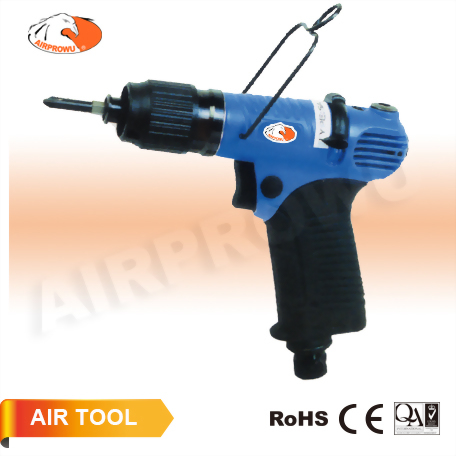

1/4" Hex Drive Clutch Type Air Screwdrivers-Trigger Start
1/4" Hex Drive Air Screwdrivers
( Pistol Clutch Type Trigger Start )
QG-BPN Series
● With 3 Air Inlets, It Can Be Used In Vertical And Horizontal Applications.
● Excellent Accuracy For Various Applications And Easy Torque Adjustment.
● Repeatability ± 3%
● CPK Value ISO5393 >1.33±10%
● Air Pressure: 6 kg/cm2
1/4" Hex Drive Air Screwdrivers
( Pistol Clutch Type Trigger Start )
QG-BPN Series Trigger Start Screwdriver ( Clutch Type )
|
Model No. |
Free |
Net |
Overall |
High |
Diameter |
Horse |
Air |
Max. |
Max |
|||||
|
Trigger Start |
無負載 |
重量 |
長度 |
高度 |
把手外徑 |
氣管 |
耗氣量 |
最大 |
螺絲最大值 |
|||||
|
BPN Series |
R.P.M |
lb |
g |
Inch |
mm |
Inch |
mm |
Inch |
mm |
mm |
m3/min |
Nm |
mm |
|
|
SA-QG39BPN |
1,600 |
1.43 |
650 |
5.51 |
140 |
5.59 |
142 |
1.42 |
36 |
5 |
0.28 |
5 |
5 |
|
|
SA-QG45BPN |
750 |
1.43 |
650 |
5.51 |
140 |
5.59 |
142 |
1.42 |
36 |
5 |
0.28 |
7 |
6 |
|
|
SA-QG48BPN |
1,700 |
2.03 |
920 |
6.50 |
165 |
6.06 |
154 |
1.69 |
43 |
8 |
0.55 |
7 |
6 |
|
