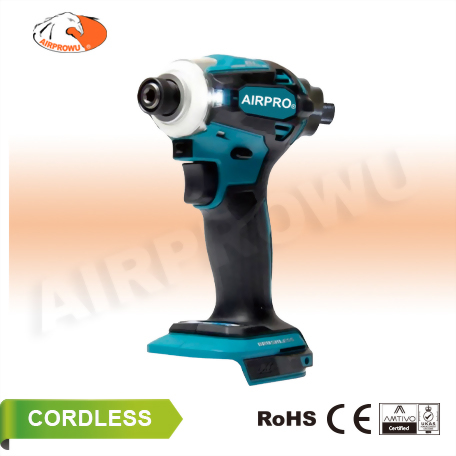

1/4" Brushless Auto Shut-Off Torque Screwdriver w/o Battery & Charger
Model :
SEID1800V-004
SEID1800V-004 1/4" Hex.
Brushless Auto Shut-Off Torque Screwdriver
w/o Battery & Charger
● Light Weight, Delivers Larger, Consistent and Stable torque output.
Light weight design and high torque performance.
It eliminates torque deviation caused by temperature rise during long hours operation.
● Automatic Stop.
● Torque Adjustment Knob.
● Trorque Setting Steps: (Same as traditional hydraulic pulse tools)
1- Firstly, set the desired fastening torque.
2- During the first operation, confirm the desired torque with a manual torque wrench.
3- Turn the torque adjustment knob on the lithium battery torque wrench to the desired torque.
4- Ready for mass production operation.
● Please reconfirm the torque when changing the workpiece or the front sleeve.

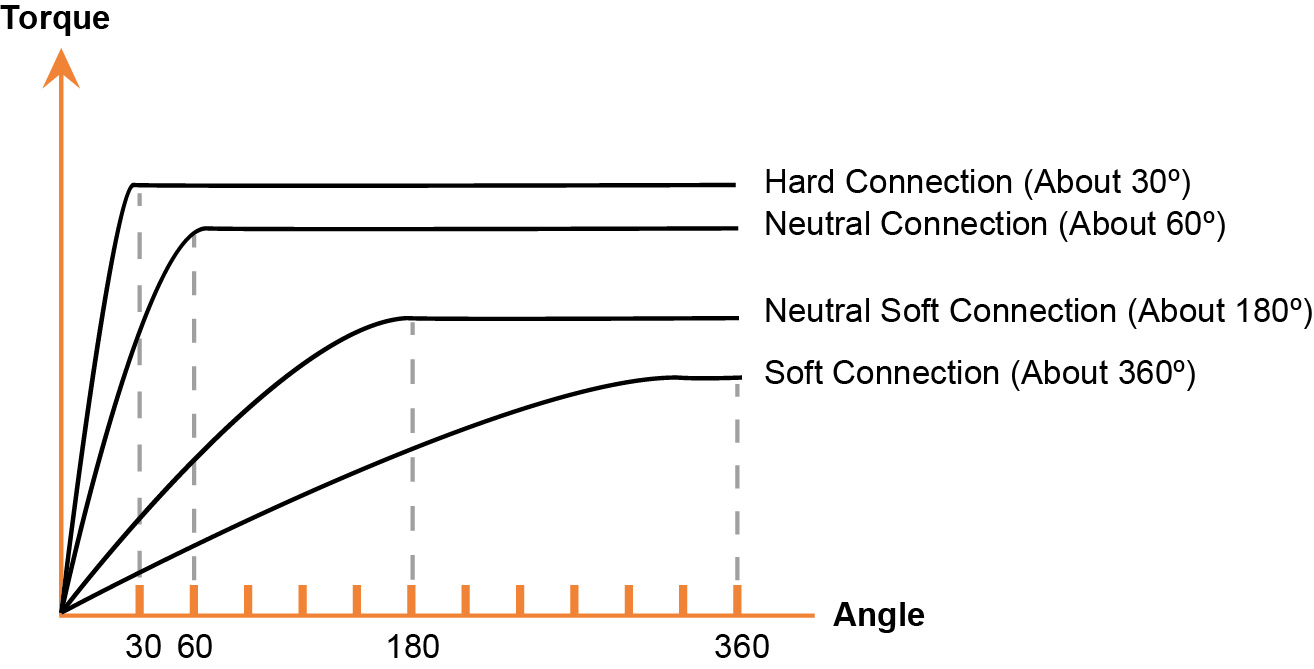

● Torque-angle correlation curves for different types of screws:
Brushless Auto Shut-Off Torque Screwdriver
w/o Battery & Charger
● Light Weight, Delivers Larger, Consistent and Stable torque output.
Light weight design and high torque performance.
It eliminates torque deviation caused by temperature rise during long hours operation.
● Automatic Stop.
● Torque Adjustment Knob.
● Trorque Setting Steps: (Same as traditional hydraulic pulse tools)
1- Firstly, set the desired fastening torque.
2- During the first operation, confirm the desired torque with a manual torque wrench.
3- Turn the torque adjustment knob on the lithium battery torque wrench to the desired torque.
4- Ready for mass production operation.
● Please reconfirm the torque when changing the workpiece or the front sleeve.
● Torque-angle correlation curves for different types of screws:
Torque Adjustment Knob
Auto Shut-Off
SEID1800V-004 1/4" Hex.
Brushless Auto Shut-Off Torque Screwdriver
w/o Battery & Charger
● No.Load Speed: 2,600 RPM
● Torque: 10-30 Nm (7-22 ft-lb)
● Voltage: AC 110V ~ 240V (50/60Hz)
● Size: 140 x 210 mm
● Weight: 0.66 kg (1.5 lb) Lithium-Free
● Voltage: 18V-20V
● Lithium-Ion Battery: 2.0Ah-5.0Ah
● Torque Accuracy: ±5%
● Packing: Corrugated Box
Brushless Auto Shut-Off Torque Screwdriver
w/o Battery & Charger
● No.Load Speed: 2,600 RPM
● Torque: 10-30 Nm (7-22 ft-lb)
● Voltage: AC 110V ~ 240V (50/60Hz)
● Size: 140 x 210 mm
● Weight: 0.66 kg (1.5 lb) Lithium-Free
● Voltage: 18V-20V
● Lithium-Ion Battery: 2.0Ah-5.0Ah
● Torque Accuracy: ±5%
● Packing: Corrugated Box
SEID1800V-004 1/4" Hex.
Brushless Auto Shut-Off Torque Screwdriver
w/o Battery & Charger
Applicable
● Using a Makita 18V-20V 2.0Ah-8.0Ah lithium-ion battery.
● Automotive Industry: Automobile, Electric vehicle, Truck & Bicycle assembly line.
● Heavy Trucks: Truck, Car, Tire & Engine repair.
● Home Appliance Industry: Motor, Fan, Home appliance & Small generator assembly line.
● Electronic Industry: Laptop, Electronic, Al, Robotic arm assembly line.
● Energy Equipment: Wind power, Solar power, Nuclear power generation & Generator repair.
Brushless Auto Shut-Off Torque Screwdriver
w/o Battery & Charger
Applicable
● Using a Makita 18V-20V 2.0Ah-8.0Ah lithium-ion battery.
● Automotive Industry: Automobile, Electric vehicle, Truck & Bicycle assembly line.
● Heavy Trucks: Truck, Car, Tire & Engine repair.
● Home Appliance Industry: Motor, Fan, Home appliance & Small generator assembly line.
● Electronic Industry: Laptop, Electronic, Al, Robotic arm assembly line.
● Energy Equipment: Wind power, Solar power, Nuclear power generation & Generator repair.
