Torque Testers

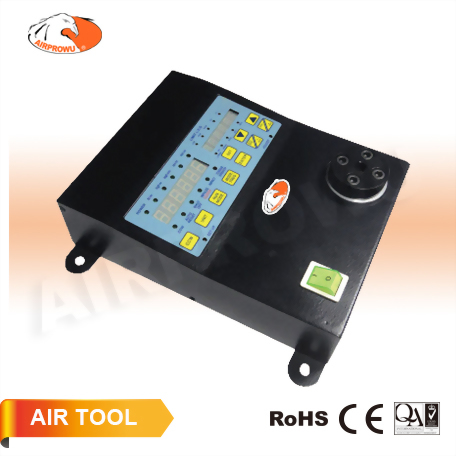

Multi-Function Torque Tester For Air , Electric Screwdriver
Display:
● Same time display of torque value & B.P.M., also available to set High, Low Pass torque value .
● Applicable to test forward, reverse torque value, optional to auto reset to zero & time to reset zero.
● Torque value unit: Nm, lbf.ft, lbf.in, kgf.m, kgf.cm
● The strength of filter wave is adjustable anytime, to reach its optimum state
Transducer:
● Torque Range: 0.5~500 Nm.
● Accuracy: better than ±3%.
● With standard RS232 interface, connect to computer or printer with specific software.
● Voltage: AC100V~240V auto shift.
Multi-Function Torque Tester For Air , Electric Screwdriver
|
ITEM NO |
Measurement Range |
Application |
|||
|
Impact Type |
Oil Pulse Type |
Cushion Type |
Manual Type |
||
|
Nm |
▄ (in) |
▄ (in) |
▄ (in) |
▄ (in) |
|
|
TWTB-0.5 |
0.025 - 0.5 |
- |
- |
1/4 |
1/4 |
|
TWTB-1 |
0.05 - 1 |
- |
1/4 |
1/4 |
1/4 |
|
TWTB-2 |
0.1 - 2 |
- |
1/4 |
1/4 |
1/4 |
|
TWTB-3 |
0.15 - 3 |
- |
1/4 |
- |
1/4 |
|
TWTB-4 |
0.2 - 4 |
- |
1/4 |
- |
1/4 |
|
TWTB-5 |
0.025 - 5 |
- |
1/4 |
1/4 |
1/4 |
|
TWTB-10 |
0.5 - 10 |
- |
1/4 |
1/4 |
1/4 |
|
TWTB-20 |
1 - 20 |
- |
1/4 |
1/4 |
1/4 |
|
TWTB-25 |
1.25 - 25 |
1/4 |
- |
- |
1/4 |
|
TWTB-30 |
1.5 - 30 |
- |
3/8 1/4 |
- |
3/8 1/4 |
|
TWTB-40 |
2 - 40 |
- |
3/8 1/4 |
- |
3/8 1/4 |
|
TWTB-50 |
2.5 - 50 |
1/4 3/8 |
- |
- |
1/4 3/8 |
|
TWTB-100 |
5 - 100 |
1/4 3/8 1/2 |
- |
- |
1/4 3/8 1/2 |
|
TWTB-250 |
12.5 - 250 |
3/8 1/2 |
- |
- |
3/8 1/2 |
|
TWTB-500 |
25 - 500 |
3/8 1/2 |
- |
- |
3/8 1/2 |
