  • 90° Air Angle Drill (0.6HP)
  • 90° Air Angle Drill (0.6HP)

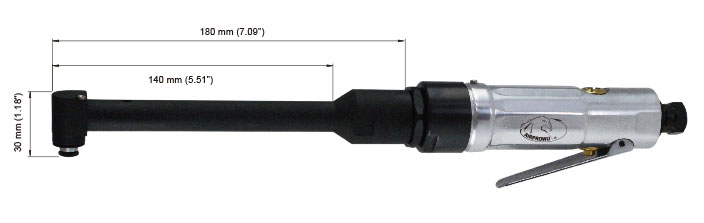

90° Air Angle Drill (0.6HP)

Model : SA6612 (L)

SA6612              Aircraft Tool
90° Air Angle Drill (0.6HP)
w/o Collet ; w/ Hex Wrench

SA6612L            Aircraft Tool
90° Extended Air Angle Drill (0.6HP)
w/o Collet ; w/ Hex Wrench

● Free Speed: 3,200 RPM
● Horse Power: 0.6 HP

Collet For Optional:


Item No.

Collet Size

mm

AC-15M

1.5

AC-20M

2.0

AC-22M

2.2

AC-24M

2.4

AC-25M

2.5

AC-30M

3.0

AC-31M

3.1

AC-32M

3.2

AC-38M

3.8

AC-40M

4.0

AC-45M

4.5

AC-46M

4.6

AC-48M

4.8

AC-50M

5.0

AC-52M

5.2

AC-58M

5.8

AC-59M

5.9


Item No.

Collet Size

Inch

AC-332

3/32"

AC-18

1/8"

AC-532

5/32"

AC-316

3/16"


SA6606-R
90° Repl Head Of SA6606 & SA6612

● Spindle Thread: 9/32"-40


SA6606L-R
90° Repl Head Of SA6606L & SA6612L

● Spindle Thread: 9/32"-40


SA6612              Aircraft Tool
90° Air Angle Drill (0.6HP)
w/o Collet ; w/ Hex Wrench

SA6612L            Aircraft Tool
90° Extended Air Angle Drill (0.6HP)
w/o Collet ; w/ Hex Wrench


Model No.

Spindle Thread

Horse Power

Free Speed

Air Inlet

Net Weight

Overall Length

Air Consumption

主軸螺紋

馬力

無負載轉速

進氣口

重量

長度

耗氣量

UNF

HP

W

R.P.M

NPT(PT)

lb

kg

Inch

mm

CFM

L/min

SA6612

9/32"- 40

0.6

447

3,200

1/4"

1.95

0.89

10.63

270

7.0

198

SA6612L

9/32"- 40

0.6

447

3,200

1/4"

2.16

0.98

13.39

340

7.0

198
