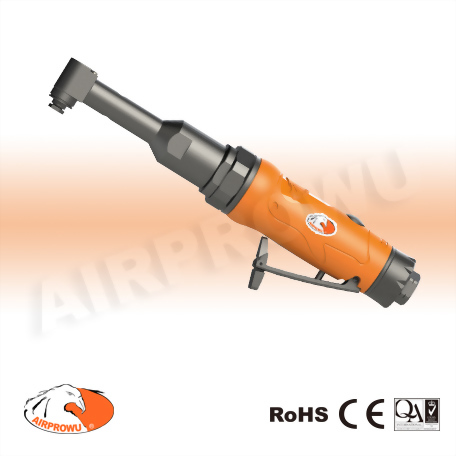

90° Air Angle Drill (0.3HP)

Model : SA6613 (L)

SA6613              Aircraft Tool
90° Air Angle Drill (0.3HP)
w/ Collet

SA6613L            Aircraft Tool
90° Extended Air Angle Drill (0.3HP)
w/ Collet

● Free Speed: 4,000 RPM
● Horse Power: 0.3 HP
● Adjust Side Exhaust





Collet For Optional:



Item No.

Collet Size

mm

AC-15MA

1.5

AC-20MA

2.0

AC-22MA

2.2

AC-24MA

2.4

AC-25MA

2.5

AC-30MA

3.0

AC-31MA

3.1

AC-32MA

3.2

AC-38MA

3.8

AC-40MA

4.0

AC-45MA

4.5

AC-46MA

4.6

AC-48MA

4.8

AC-50MA

5.0

AC-52MA

5.2

AC-58MA

5.8

AC-59MA

5.9


Item No.

Collet Size

Inch

AC-332A

3/32"

AC-18A

1/8"

AC-532A

5/32"

AC-316A

3/16"



SA6613              Aircraft Tool
90° Air Angle Drill (0.3HP)
w/ Collet

SA6613L            Aircraft Tool
90° Extended Air Angle Drill (0.3HP)
w/ Collet

Model No.

Collect
Capacity

Horse
Power

Free
Speed

Air Inlet

Net
Weight

Overall
Length

Air
Consumption

Sound
Level

Vibration

夾頭能力

馬力

無負載轉速

進氣口

重量

長度

耗氣量

噪音值

震動值

mm

HP

W

R.P.M

NPT(PT)

lb

kg

Inch

mm

CFM

L/min

dB(A)

m/s2

SA6613

2.4 - 5.9

0.3

224

4,000

1/4"

1.40

0.64

9.45

240

3.0

84

81.5

<2.5

SA6613L

2.4 - 5.9

0.3

224

4,000

1/4"

1.65

0.75

12.13

308

3.0

84

81.5

<2.5
