45° Air Angle Drill (0.3HP) Collect Type
45° Air Angle Drill (0.3HP)
w/o Collet ; w/ Hex Wrench
SA6605L Aircraft Tool
45° Extended Air Angle Drill (0.3HP)
w/o Collet ; w/ Hex Wrench
● Free Speed: 3,200 RPM
● Horse Power: 0.3 HP
Collet For Optional:
|
Item No. |
Collet Size |
|
mm |
|
|
AC-15M |
1.5 |
|
AC-20M |
2.0 |
|
AC-22M |
2.2 |
|
AC-24M |
2.4 |
|
AC-25M |
2.5 |
|
AC-30M |
3.0 |
|
AC-31M |
3.1 |
|
AC-32M |
3.2 |
|
AC-38M |
3.8 |
|
AC-40M |
4.0 |
|
AC-45M |
4.5 |
|
AC-46M |
4.6 |
|
AC-48M |
4.8 |
|
AC-50M |
5.0 |
|
AC-52M |
5.2 |
|
AC-58M |
5.8 |
|
AC-59M |
5.9 |
|
Item No. |
Collet Size |
|
Inch |
|
|
AC-332 |
3/32" |
|
AC-18 |
1/8" |
|
AC-532 |
5/32" |
|
AC-316 |
3/16" |

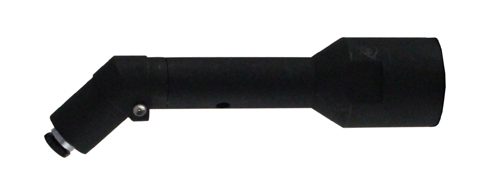

SA6605-R
45° Repl Head Of SA6605 & SA6611
● Spindle Thread: 9/32"-40
45° Repl Head Of SA6605L & SA6611L
● Spindle Thread: 9/32"-40
45° Air Angle Drill (0.3HP)
w/o Collet ; w/ Hex Wrench
SA6605L Aircraft Tool
45° Extended Air Angle Drill (0.3HP)
w/o Collet ; w/ Hex Wrench
|
Model No. |
Spindle Thread |
Horse Power |
Free Speed |
Air Inlet |
Net Weight |
Overall Length |
Air Consumption |
||||
|
主軸螺紋 |
馬力 |
無負載轉速 |
進氣口 |
重量 |
長度 |
耗氣量 |
|||||
|
UNF |
HP |
W |
R.P.M |
NPT(PT) |
lb |
kg |
Inch |
mm |
CFM |
L/min |
|
|
SA6605 |
9/32"-40 |
0.3 |
224 |
3,200 |
1/4" |
1.70 |
0.77 |
10.24 |
260 |
3.0 |
85 |
|
SA6605L |
9/32"-40 |
0.3 |
224 |
3,200 |
1/4" |
2.18 |
0.99 |
14.17 |
360 |
3.0 |
85 |
